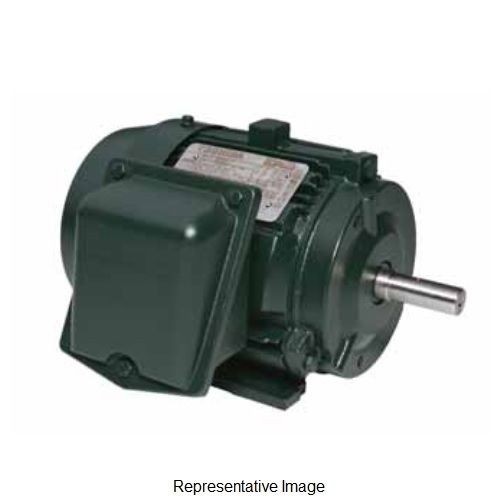

Toshiba 0104SDSR41A-P Motor, Low Voltage, 1800 rpm, 10 HP
Selected 0104SDSR41A-PToshiba 0104SDSR41A-P Motor, Low Voltage, 1800 rpm, 10 HP
Toshiba 0104SDSR41A-P Motor, Low Voltage, 1800 rpm, 10 HP
SKU: TOS0104SDSR41A-P
Manufacturer Part Number: 0104SDSR41A-P
Specification
| Insulation Class | F |
|---|---|
| Mounting Style | C-Face Footed |
| Voltage Rating | 230/460 V |
| Enclosure Type | TEFC |
| Speed | 1800 RPM |
| Horsepower | 10 hp |
| Bearing Type | 6308ZZC3 |
| Amperage Rating | 26/13 A |
| Type | IKH |
| Torque Rating | 29.8 lb/ft |
| Temperature Rating | 40 C Ambient |
| Series | EQP Global |
| Frame | 215T |
