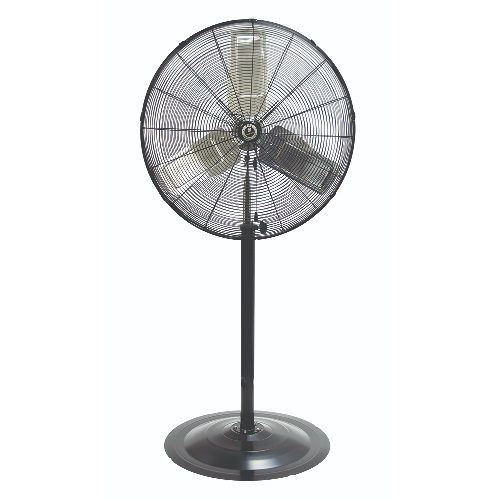

TPI CACU30PHD 1-Phase Heavy Duty Standard Air Circulator, 30 in Blade, 5000 cfm High, 4600 cfm Medium, 4200 cfm Low Flow Rate, 120 VAC, 3.6 A
TPI CACU30PHD 1-Phase Heavy Duty Standard Air Circulator, 30 in Blade, 5000 cfm High, 4600 cfm Medium, 4200 cfm Low Flow Rate, 120 VAC, 3.6 A
SKU: MRKCACU30PHD
Manufacturer Part Number: CACU30PHD
UPC: 686334876179
Documents
Features
- SJT type 3 conductor, 9 ft long cord
- Coated steel guards with retaining clips
- Steel hub/spider aluminum paddle blades
- Pole adjusts center of fan from 43 to 60 in
- 1-Phase, ball bearing, open ventilated, permanent split capacitor and permanently lubricated motor
- Motor drive
- Motor, blades, guards, and mount are packed and shipped in a single UPS-able carton
- These circulators should be used in clean and dry commercial applications such as schools, shops, offices or warehouses
- 7000 cfm/250 sq-ft area velocity profile
- Flow rate is measured 2 ft from face of fan
Specification
| Housing Material | Steel |
|---|---|
| Motor Type | Split Capacitor |
| Mounting Type | Surface |
| Number of Speeds | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 3.6 A |
| Blade Material | Aluminum |
| Blade Size | 30 |
| Blade Type | Paddle |
| Catalog ID | MRKCACU30PHD |
| Control Type | Pull Chain |
| Cord Type | 9 ft SJT |
| Domestic/Import | Import |
| Flow Rate | 5000 cfm High, 4600 cfm Medium, 4200 cfm Low |
| Type | Heavy Duty |
| Voltage Rating | 120 VAC |
| Application | Commercial and Industrial |
| Standard & Approvals | UL Listed |
| Power Rating | 1/3/2025 12:00:00 AM |
