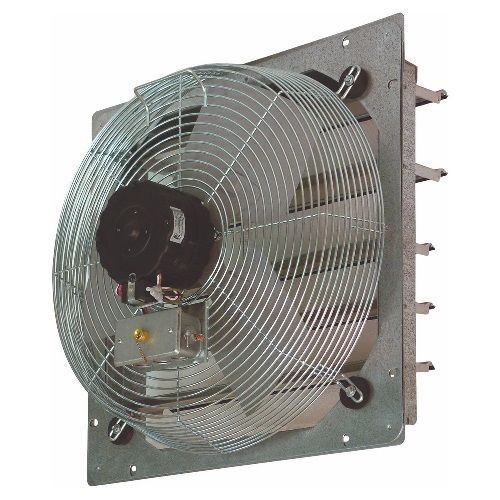

TPI CE24DS 1-Phase Direct Drive Standard Exhaust Fan, 24 in Dia Blade, 120 VAC, 2770/3400 cfm Flow Rate, 2 Speeds, 27-1/8 in W
TPI CE24DS 1-Phase Direct Drive Standard Exhaust Fan, 24 in Dia Blade, 120 VAC, 2770/3400 cfm Flow Rate, 2 Speeds, 27-1/8 in W
SKU: MRKCE24DS
Manufacturer Part Number: CE24DS
UPC: 686334798648
Documents
Features
- Pull chain switch
- Eliminates need for external framing and shutter
- No cord-junction box provided for direct wiring
- Single Phase, totally enclosed, permanently lubricated motor
- 2 speed sleeve bearing permanent split capacitor
- 27.75 in blade dia, 6.125 in max open
- Steel housing, aluminum blade and steel spiral wire guards
- Wall or shutter mounting
- Rough-in hole size is 1/2 in larger than fan blade size
- 2.5 A Amperage Rating
- 1070/1140 rpm
- AC Motor
- Ball bearing
- 7.18 in D
Specification
| Height | 27-1/8 in |
|---|---|
| Material | Aluminum |
| Number of Speeds | 2 |
| Voltage Rating | 120 VAC |
| Width | 27-1/8 in |
| Application | For Indoor-Industrial/Some Commercial-Wall Exhaust Applications |
| Standard & Approvals | UL Listed |
| Blade Diameter | 2 |
| Flow Rate | 2770/3400 |
