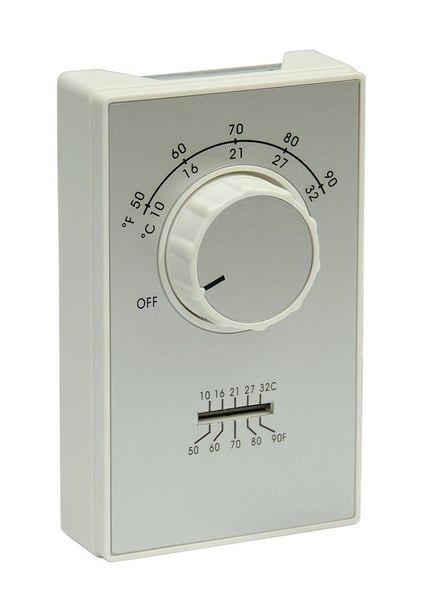

TPI ET9DTS ET9 Line Voltage Thermostat With Thermometer, 2-Pole Heat Only Thermostat, 50 to 90 deg F Control, 2 deg F Heat Differential, Snap Action, DPST Switch, Import
TPI ET9DTS ET9 Line Voltage Thermostat With Thermometer, 2-Pole Heat Only Thermostat, 50 to 90 deg F Control, 2 deg F Heat Differential, Snap Action, DPST Switch, Import
SKU: MRKET9DTS
Manufacturer Part Number: ET9DTS
UPC: 686334523851
Features
- DP models include positive off
- Fahrenheit and Celsius temperature scale
- Thermometer standard
- Terminal connection
- Imported to TPI Corporation specifications
- Plastic construction
- Suitable for direct connection with any resistance heating elements and unit heaters
- 22 A at 120 to 277 VAC heating resistive
Specification
| Series | ET9 |
|---|---|
| Switch Action | Snap |
| Switch Type | DPST |
| Thermostat Type | 2-Pole Heat Only |
| Voltage Rating | 120/277 VAC |
| Application | Residential Applications |
| Standard & Approvals | UL Listed, CSA Certified, PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | MRKET9DTS |
| Color | Shadow White |
| Control Range | 50 to 90 deg F |
| Differential | 2 deg F Heat |
| Dimensions | 4-3/4 in H x 2-3/4 in W x 2-3/4 in D |
| Domestic/Import | Import |
| Full Load Current | 22 A |
