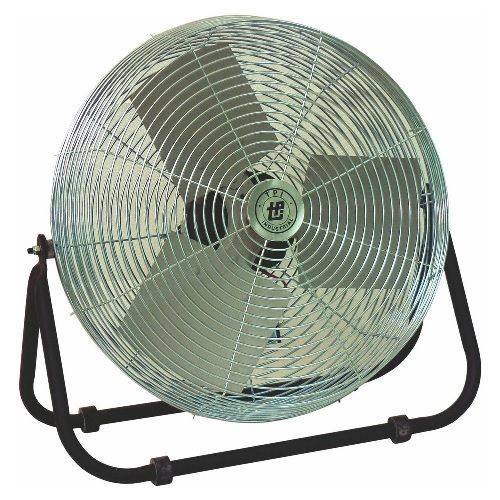

TPI F18TE 1-Phase Standard Workstation Floor Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 VAC, 1.5 A
TPI F18TE 1-Phase Standard Workstation Floor Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 VAC, 1.5 A
SKU: MRKF18TE
Manufacturer Part Number: F18TE
UPC: 686334797290
Documents
Features
- Head tilts 360 deg
- Coated steel guards
- SJT type 3 conductor, 10 ft L cord
- Steel hub/spider aluminum paddle blades
- 1-Phase, sleeve bearing, totally enclosed and permanently lubricated motor
- NO 42 frame
- 5/16 in Dia shaft
- 2900 cfm/125 sq-ft area velocity profile
- Flow rate is measured 2 ft from face of fan
Specification
| Housing Material | Steel |
|---|---|
| Motor Type | AC |
| Mounting Type | Floor |
| Number of Speeds | 3 |
| Speed | 1370 rpm Low/1550 rpm Medium/1800 rpm High |
| Type | Standard |
| Voltage Rating | 120 VAC |
| Application | Indoor, Protected Outdoor-Industrial, Commercial and Residential |
| Standard & Approvals | cETLus Listed, OSHA Approved |
| Amperage Rating | 1.5 A |
| Dimensions | 20-1/2 in H x 20-1/2 in W x 10-1/2 in D |
| Blade Material | Aluminum |
| Blade Type | Paddle |
| Control Type | Rotary Switch |
| Cord Type | 10 ft SJT |
| Domestic/Import | Import |
| Power Rating | 1/8/2025 12:00:00 AM |
| Blade Size | 18 |
| Flow Rate | 1800 cfm High, 1500 cfm Medium, 1300 cfm Low |
