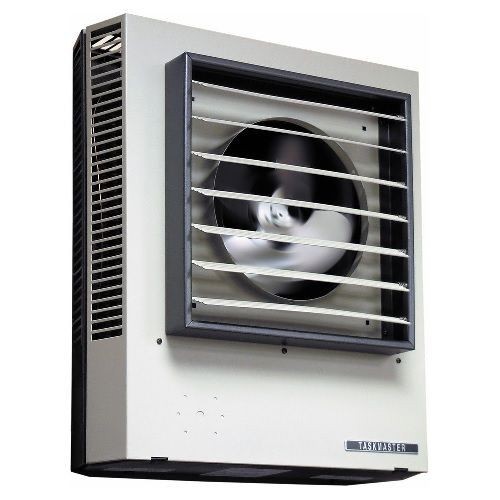

TPI F2F5107CA1L 5100 1/3-Phase Fan Forced Standard Unit Heater, 25.6 Btu/hr Capacity, 208 VAC, 7.5 kW Power Rating

Selected MRKF2F5107CA1L
MRKF2F5107CA1L

Documents

Features

  • Heavy 18 ga welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation maintenance
  • Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow
  • All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur
  • Totally enclosed, 1-Speed, 1-Phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 20 kW models
  • All motors mounted with rubber insulators to minimize vibration and noise
  • Fan over-ride purges unit of residual heat at shutdown
  • Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40 to 110 deg F
  • Unit heaters can be mounted for horizontal or vertical discharge
  • 22 ft air throw
  • 34 deg F temperature rise

Specification

Material
Steel
Mounting Height
10 ft Horizontal/12 ft Vertical
Mounting Type
Surface/Wall
Power Rating
7.5
Series
Taskmaster 5100
Temperature Rating
34 deg F
Type
1/3-Phase Standard
Voltage Rating
208 VAC
Application
Indoor-Industrial and Commercial
Standard & Approvals
ABS Approved, cETLus Listed
Amperage Rating
36.1/20.8 A
Dimensions
21-1/2 in W x 6-1/2 in D x 24-5/16 in H
Capacity
25.6
Color
Gray
Finish
Powder Coated
Flow Rate
700
