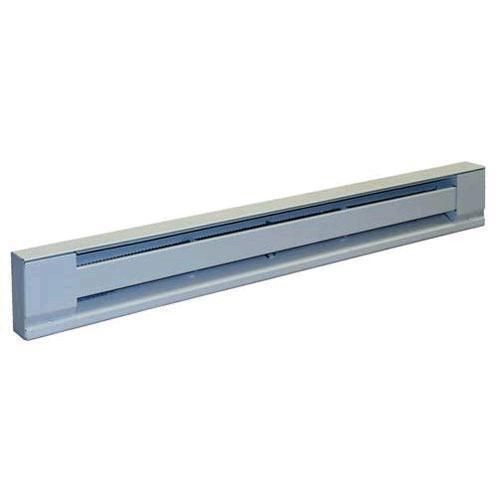

TPI H2915072S 2900S 1-Phase Standard Electric Baseboard Convection Heater, 5100/3825 Btu/hr Capacity, 208/240 VAC, 1500/1125 W Power Rating, Wall Mount
TPI H2915072S 2900S 1-Phase Standard Electric Baseboard Convection Heater, 5100/3825 Btu/hr Capacity, 208/240 VAC, 1500/1125 W Power Rating, Wall Mount
SKU: MRKH2915072S
Manufacturer Part Number: H2915072S
UPC: 686334103060
Documents
Features
- Stainless steel heating element and aluminum fins
- Painted 22 gauge steel front with 20 gauge junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
- Over-temperature thermal limit extends entire length of heated area
- Full length wire way provided along the back of the heater
- Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
- Optional in-built thermostats field installed in the junction box
- Single phase
Specification
| Material | Steel |
|---|---|
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Ivory |
| Finish | Painted |
| Voltage Rating | 208/240 VAC |
| Standard & Approvals | ETLus Listed |
| Application | For Indoor-Commercial/Residential/Some Industrial Application |
| Type | Convection |
| Series | 2900S |
| Power Rating | 1500/1125 W |
| Dimensions | 72 in L x 2-1/2 in D x 6 in H |
| Catalog ID | MRKH2915072S |
| Capacity | 5100/3825 Btu |
| Amperage Rating | 6.3/4.7 A |
