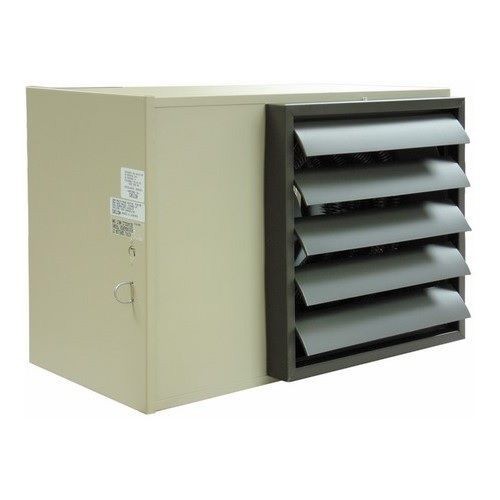

TPI H2HUH05C03 UH Series 1/3-Phase Fan Forced Horizontal Standard Unit Heater, 17100 Btu/hr Capacity, 240 VAC, 5 kW Power Rating
TPI H2HUH05C03 UH Series 1/3-Phase Fan Forced Horizontal Standard Unit Heater, 17100 Btu/hr Capacity, 240 VAC, 5 kW Power Rating
SKU: MRKH2HUH05C03
Manufacturer Part Number: H2HUH05C03
UPC: 686334644945
Documents
Features
- Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance
- Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade
- All units come equipped with automatic resetting type limit controls to de-energize the heater should an over temperature situation occur
- Totally enclosed, single phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise
- Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard
- Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow
- 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application
- 240 V control
- 26 ft air throw
- 40 deg F temperature rise
- Contactor control system
Specification
| Material | Steel |
|---|---|
| Mounting Height | 9 |
| Mounting Type | Panel |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20.8/12.1 A |
| Capacity | 17100 |
| Catalog ID | MRKH2HUH05C03 |
| Color | Beige |
| Dimensions | 20 in W x 11 in D x 13 in H |
| Finish | Powder Coated |
| Flow Rate | 400 |
| Power Rating | 5 |
| Series | UH Series |
| Type | 1/3-Phase Standard |
| Voltage Rating | 240 VAC |
| Application | Indoor-Industrial and Commercial |
| Standard & Approvals | cETLus Listed |
