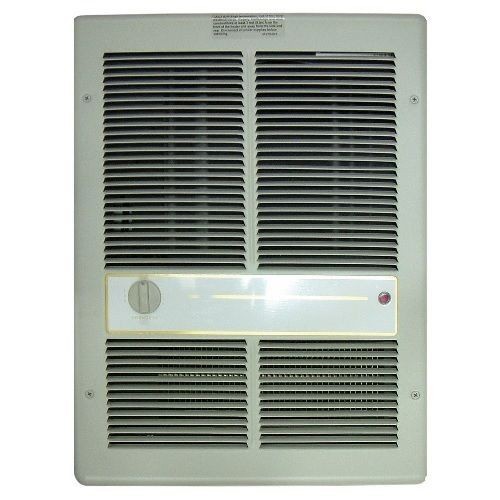

TPI H3317TRPW 3310 1-Phase Fan Forced Heater With In-Built Single Pole Thermostat, 4.8 kW, 240 VAC

TPI H3317TRPW 3310 1-Phase Fan Forced Heater With In-Built Single Pole Thermostat, 4.8 kW, 240 VAC
SKU: MRKH3317TRPW
Manufacturer Part Number: H3317TRPW
UPC: 686334382243
Documents
Features
- Powder coated 18 ga steel front
- Automatic reset thermal limit
- Steel block fin element
- 600 rpm/175 cfm vane axial fan blade
- 15-3/8 in W x 20-9/64 in H grill
- Units with dual wattage, factory wired to highest wattage
- Wattage selectable at time of installation on some models
- Furnish and install electric forced air heaters where specified
- The heaters shall be constructed of a heavy gauge steel housing
- The heaters shall have a low speed 600 rpm motor which drives a vane axial blower to deliver a quiet 175 cfm of down flow air
- The heating element shall be of the sealed block fin type with large, parallel steel fins for quick heat transfer
- Unit shall have a standard thermal overload cutoff for added safety, a fan switch for fan only operation, and is available with a single pole, or double pole built-in thermostat, or no thermostat
- The in-built thermostat shall be calibrated to provide a range of 0 to 110 deg F
Specification
Minimum Order Qty | 1 |
---|---|
Order Interval | 1 |
Catalog ID | MRKH3317TRPW |
Standard & Approvals | cETLus Listed |
Power Rating | 4800 |
Temperature Rating | 90 deg F |
Voltage Rating | 240 VAC |
Amperage Rating | 20 A |
Flow Rate | 175 |
Mounting Type | Wall |
Type | 1-Phase Standard |
Finish | Powder Coated |
Dimensions | 14-3/16 in W x 4 in D x 19-15/16 in H |
Color | White |
Material | Steel |
Capacity | 16380 |
Series | 3310 |
Speed | 600 |
