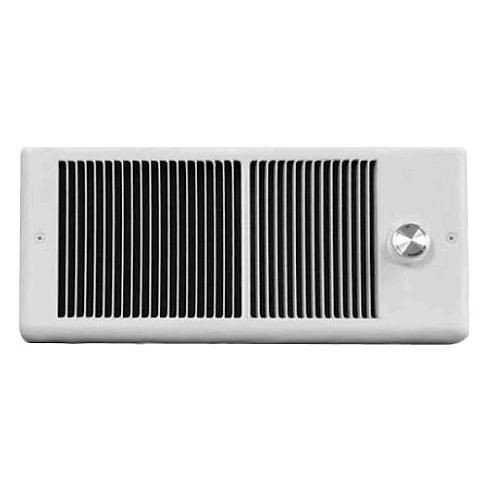

TPI HF4315TRPW 4300 Fan Forced Electric Heater With Wall Box, 1.5/1.125 kW, 208/240 VAC

Selected TPI HF4315TRPW 4300 Fan Forced Electric Heater With Wall Box, 1.5/1.125 kW, 208/240 VAC
TPI HF4315TRPW 4300 Fan Forced Electric Heater With Wall Box, 1.5/1.125 kW, 208/240 VAC

Documents

Short Description

For over 65 years TPI Corporation has been known as America's Comfort Conditioning Company. Today - as a U.S. based privately held manufacturer - TPI Corporation continues to produce innovative, industry leading products for the electric heating, fan and ventilation, industrial lighting, commercial controls, and industrial oven markets.

Features

  • Built- in single pole thermostat
  • Manual reset thermal limit
  • 1 phase, 90 deg F temperature rating
  • Propeller style fan blade is 2200 rpm/70 cfm
  • Powder coated 20 gauge steel front
  • Finned tubular steel element
  • Unit can be positioned to allow left, right or top discharge
  • 7-5/8 in H x 16-3/4 in W x D Grille
  • 7-1/8 in H x 14-1/2 in W x 3-1/2 in D Housing

Specification

Material
Steel
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Color
White
Power Rating
1500/1125 W
Series
4300
Type
Fan-Forced
Voltage Rating
208/240 VAC
Standard & Approvals
cETLus Listed
Catalog ID
MRKHF4315TRPW
Capacity
5120/3840 Btu
Amperage Rating
5.4/6.3 A
Application
For Indoor and Commercial/Residential Purpose
Finish
Powder Coated Steel
