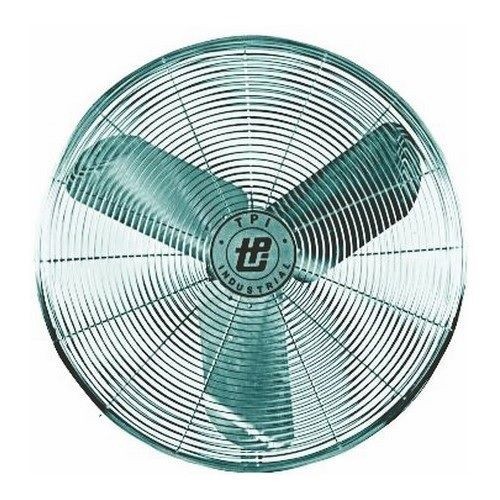

TPI IHP30H 1-Phase Assembled High Performance Circulator Head, 30 in Blade, 8200 cfm High, 6200 cfm Low Flow Rate, 120 VAC, 3 A
TPI IHP30H 1-Phase Assembled High Performance Circulator Head, 30 in Blade, 8200 cfm High, 6200 cfm Low Flow Rate, 120 VAC, 3 A
SKU: MRKIHP30H
Manufacturer Part Number: IHP30H
UPC: 686334798990
Documents
Features
- Pull chain switch
- Steel hub/spider aluminum paddle blades
- Coated steel guards
- Permanent split capacitor
- Permanently lubricated
- 12 ft cord length
- 1/3 HP
- 33.5 in size
- Motor drive type
- Stationary fan head type
- 1 phase
- 1/2 in shaft
- 48 in frame size
- 44 lb weight
- Ball bearing, totally enclosed
Specification
| Housing Material | Steel |
|---|---|
| Mounting Type | Pedestal/Wall/I-Beam/Ceiling/Suspension/Pole |
| Number of Speeds | 2 |
| Speed | 1100/800 |
| Type | Assembled |
| Voltage Rating | 120 VAC |
| Application | For Indoor-Industrial Application |
| Standard & Approvals | cETLus Listed, OSHA Approved |
| Dimensions | 33-1/2 in Dia x 14-1/2 in D |
| Blade Material | Aluminum |
| Blade Size | 30 |
| Blade Type | Paddle |
| Cord Type | SJT Type 3-Conductor |
| Domestic/Import | Domestic |
| Flow Rate | 6200 cfm Low, 8200 cfm High |
| Amperage Rating | 3 A |
