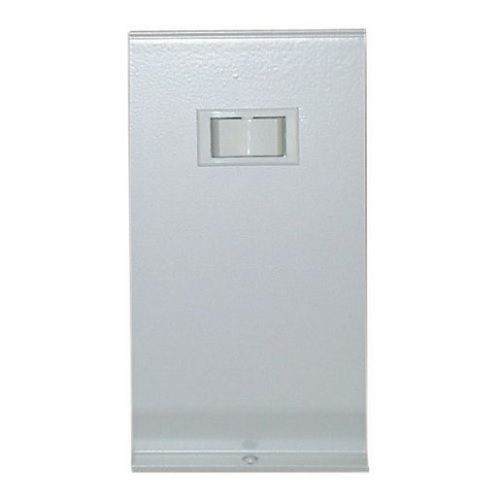

TPI KBWC Solid State Fan Speed Control, 120 VAC, 3 A, Import

Selected TPI KBWC Solid State Fan Speed Control, 120 VAC, 3 A, Import
TPI KBWC Solid State Fan Speed Control, 120 VAC, 3 A, Import

Short Description

The KBWC Series is a comprehensive line of motor speed controls for air-moving applications that utilize Shaded Pole, Permanent Split Capacitor (PSC) and AC/DC motors. These economical speed controls are designed to replace obsolete, tapped winding or reactive methods of speed control. The full-wave phase control circuitry minimizes power loss, thereby reducing energy requirements. The controls provide infinitely variable speed adjustment which allows the end-user to select the desired level of air volume. These models cover a wide range of current ratings (2.5 to 15 A AC) and voltage ratings (115, 230, 277 VAC).

Features

  • Important features, such as RFI filter, minimum speed trimpot and built-in ON/OFF line switch are standard
  • All models are designed to be mounted into a standard 2 x 4 in electrical wall box
  • For use with shaded pole, permanent split capacitor (PSC) and universal motors
  • Wall mounting
  • 1-2 fans speed control

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
MRKKBWC-13K
Depth
2.55
Domestic/Import
Import
Series
KBWC
Suitable For Use With
Model CHR-56, IHR-48/56, HDHR-56/60-WR Ceiling Fan
Type
Solid State
Voltage Rating
120 V
Width
2-3/4
Application
Indoor-Commercial and Industrial Applications
Standard & Approvals
PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
Height
4/1/2002 12:00:00 AM
Includes
Mounting Kit
Amperage Rating
3 A
