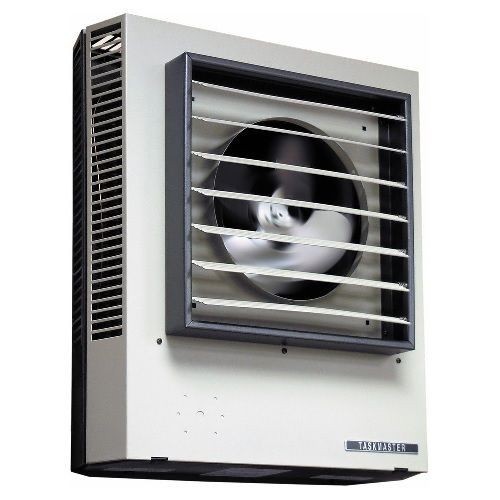

TPI P3P5130CA1N 5100 3-Phase Fan Forced Standard Unit Heater, 102.4 Btu/hr Capacity, 480 VAC, 30 kW Power Rating

Selected MRKP3P5130CA1N
MRKP3P5130CA1N

Documents

Features

  • Heavy 18 ga welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation maintenance
  • Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow
  • All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur
  • Totally enclosed, 2-Speed, 1-Phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 to 50 kW models
  • All motors mounted with rubber insulators to minimize vibration and noise
  • Fan over-ride purges unit of residual heat at shutdown
  • Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40 to 110 deg F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls
  • 25 to 50 kW units are designed for two stage heating operation
  • Unit heaters can be mounted for horizontal or vertical discharge
  • 40 ft air throw
  • 47 to 53 deg F temperature rise

Specification

Material
Steel
Mounting Height
12 ft Horizontal/20 ft Vertical
Mounting Type
Surface/Wall
Minimum Order Qty
1
Order Interval
1
Amperage Rating
36.2 A
Capacity
102.4 Btu/hr
Catalog ID
MRKP3P5130CA1N
Color
Gray
Dimensions
29-1/4 in W x 10-1/16 in D x 34 in H
Finish
Powder Coated
Flow Rate
2000/1800
Power Rating
30
Series
Taskmaster 5100
Temperature Rating
47/53 deg F
Type
3-Phase Standard
Voltage Rating
480 VAC
Application
Indoor-Industrial and Commercial
Standard & Approvals
ABS Approved, cETLus Listed
