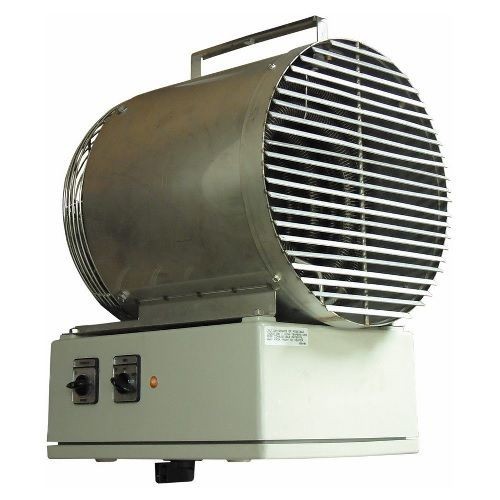

TPI P3P5530T 5500 3-Phase Standard Washdown Fan Forced Unit Heater, 102390 Btu/hr, 480 VAC, 36.1 A, 30 kW
TPI P3P5530T 5500 3-Phase Standard Washdown Fan Forced Unit Heater, 102390 Btu/hr, 480 VAC, 36.1 A, 30 kW
SKU: MRKP3P5530T
Manufacturer Part Number: P3P5530T
UPC: 686334713566
Documents
Short Description
Features
- Stainless steel finned tubular element, constructed of 304 or 316 stainless rod and fins
- Control panel on bottom of unit for ease of installation and service
- Disconnect switch with enclosure door interlock
- Front grill rotates to direct airflow
- Single-point power connection
- Fan blade epoxy coated aluminum
- Corrosion resistant in high humidity and water-saturated areas (for areas where corrosion resistance is needed in non-explosive areas, contact factory for heater applications and optional materials)
- 40 to 110 deg F thermostat
- Heavy duty 304 16 ga stainless steel shroud
- NEMA 4X non-metallic control panel
- 24 V transformer and control panel
- 3-position off-heat-fan switch
- Capillary thermostat with stainless steel sensor
- Automatic reset thermal cutout
- Totally enclosed UL listed motor
- Pilot light, power on indicator
- 24 V control
- 68 deg F temperature rise
- 35 ft air throw
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Material | 304 Stainless Steel |
| Mounting Type | Panel |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | MRKP3P5530T |
| Depth | 27 |
| Domestic/Import | Domestic |
| Finish | Epoxy Powder Coated |
| Flow Rate | 1400 |
| Power Rating | 30 |
| Series | 5500 |
| Type | 3-Phase Fan Forced Standard |
| Voltage Rating | 480 VAC |
| Width | 16 in |
| Application | Indoor-Commercial and Industrial-Corrosion Resistant |
| Standard & Approvals | cETLus/UL Listed, NEC, OSHA/ABS Approved |
| Capacity | 102390 Btu |
| Amperage Rating | 36.1 A |
| Height | 28-3/4 in |
