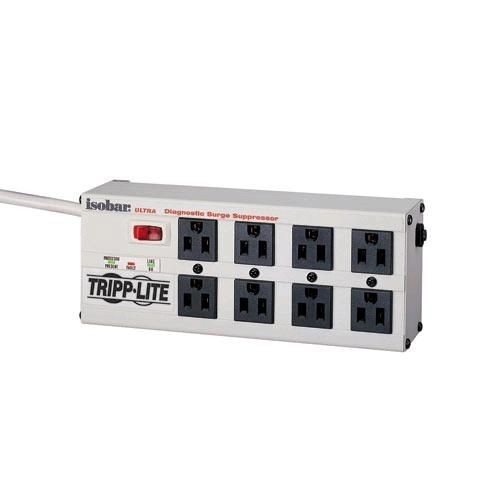

Tripp Lite ISOBAR8ULTRA Surge Protective Strip, 12 A at 120 VAC, 50/60 Hz

Selected Tripp Lite ISOBAR8ULTRA Surge Protective Strip, 12 A at 120 VAC, 50/60 Hz
Tripp Lite ISOBAR8ULTRA Surge Protective Strip, 12 A at 120 VAC, 50/60 Hz

Documents

Short Description

Tripp Lite's Isobar Premium surge and noise protectors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge protector. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR8ULTRA offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 12 foot AC line cord with space saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.

Features

  • Tripp Lite's ISOBAR is the world's #1 selling premium protector series with more than 18 million satisfied customers and a safety-tested history of 20+ years
  • Robust surge suppression with sine wave tracking protects against the heaviest of surge conditions, exceeding IEEE category AA and B specifications and reducing 6,000 V test surges to harmless levels less than 35 V
  • Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
  • 8 outlets arranged in four filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on
  • Network grade surge suppression rated at 3840 joules/97,000 amps
  • Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
  • 3 LED indicators confirm surge protector operation and site wiring status, plus warning of protector or electrical fault conditions
  • Lighted power switch with integrated 12 A circuit breaker offers power control and overload protection
  • 12 foot AC line cord with space saving angled input plug
  • Keyhole mounting tabs allow permanent installation
  • Set of 4 outlet covers safely seal off unused outlets
  • Automatic shutoff cuts power to outlets when the protection circuit has been compromised

Specification

Frequency Rating
50/60 Hz
Indicator Type
LED
Material
Metal
Mounting Type
Wall
Number of Outlets
8
Minimum Order Qty
1
Order Interval
1
Catalog ID
T-LISOBAR8ULTRA
Dimensions
8.89 cm W x 22.23 cm D x 5.56 cm H
Electrical Rating
12 A/120 VAC
Enclosure Type
NEMA 5-15P/5-15R
Energy Rating
3840 J
Peak Surge Current
97 kA
Response Time
<1 s
Terminal Type
Plug-In
Application
For premium protection of personal computers with peripherals, network and cad/cam/cae workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application
Standard & Approvals
UL1449, RoHS Compliant
