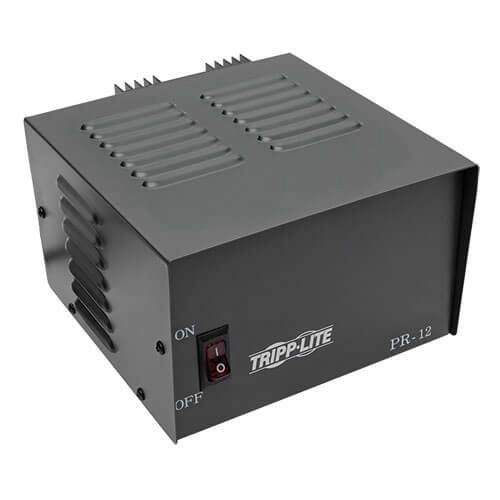

Tripp Lite PR12 AC to DC Conversion Precision Regulated DC Power Supply, 120 VAC Input, 13.8 VDC Output, 166 W Power Rating, 12 A, Benchtop Mount

Selected PR12Tripp Lite PR12 AC to DC Conversion Precision Regulated DC Power Supply, 120 VAC Input, 13.8 VDC Output, 166 W Power Rating, 12 A, Benchtop Mount
PR12Tripp Lite PR12 AC to DC Conversion Precision Regulated DC Power Supply, 120 VAC Input, 13.8 VDC Output, 166 W Power Rating, 12 A, Benchtop Mount

Documents

Short Description

Precision regulated DC power supplies are ideal for commercial/land-mobile, ham and CB radios, test bench supplies, base stations, tape players and amplifiers. Designed for years of reliable service and superior performance, they efficiently convert 120 VAC into 13.8 VDC (+/-0.5 V). The Trim Line Series of DC power supplies offers a low profile design with a footprint that matches the most popular radios on the market, such as Motorola, Radius, GE Monogram Series and EF Johnson models.

Features

  • Smaller footprint maximizes operating space
  • Automatic time controlled overcurrent protection in case of overload
  • Solid state, integrated circuit maintains excellent regulation of output voltage
  • Regulated output voltage maintains up to 95% of no load value
  • High quality filtering creates very low ripple/low noise operation
  • Heavy duty power transformer provides complete isolation from noise on incoming AC power
  • Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
  • Illuminated on/off switch
  • Connectors hardwire terminals/red positive (+), black negative (-)
  • Working temperature range: 32 to 104 deg F, 0 to 95% humidity, non-condensing
  • -15 to 50 deg C (5 to 122 deg F) storage temperature
  • LED indicators - red LED indicates that DC output is being provided

Specification

Frequency Rating
60 Hz
Height
4-1/2 in
Input Voltage
120 VAC
Mounting Type
Benchtop
Output Voltage
13.8 VDC
Minimum Order Qty
1
Order Interval
1
Catalog ID
T-LPR12
Depth
7-3/4 in
Power Rating
166 W
Type
AC to DC Conversion Precision Regulated
Width
6-3/4 in
Standard & Approvals
RoHS Compliant
Amperage Rating
12 A
