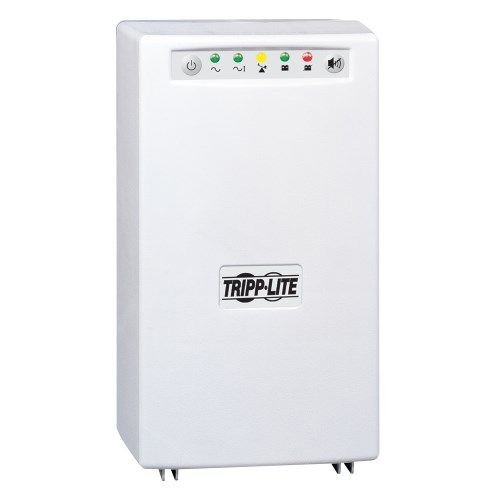

Tripp Lite SmartPro SMART1200XLHG SmartPro Line-Interactive Medical Grade Uninterruptible Power Supply, 120 VAC Input, 115/120 VAC Output, 750 W/1000 VA Power Rating, 10 to 28 min Backup, 4 Outlets

Selected Tripp Lite SmartPro SMART1200XLHG SmartPro Line-Interactive Medical Grade Uninterruptible Power Supply, 120 VAC Input, 115/120 VAC Output, 750 W/1000 VA Power Rating, 10 to 28 min Backup, 4 Outlets
Tripp Lite SmartPro SMART1200XLHG SmartPro Line-Interactive Medical Grade Uninterruptible Power Supply, 120 VAC Input, 115/120 VAC Output, 750 W/1000 VA Power Rating, 10 to 28 min Backup, 4 Outlets

Short Description

Tripp Lite SMART1200XLHG medical grade UPS system provides dependable battery backup and is fully Compliant with UL 60601-1 regulations when plugged into a hospital grade outlet, making it ideal for use in patient care vicinities. The 1 kVA/750 W capacity provides up to 28 min of runtime for a half load or 10 min for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line interactive voltage regulation corrects brownouts as low as 81 V and overvoltage's as high as 143 V to normal 120 V nominal output without drawing battery power. The SMART1200XLHG built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital grade outlets and has a hospital grade NEMA 5-15P-HG plug with a 6 ft cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 J. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Features

  • Ideal ups backup in healthcare facilities
  • Reliable battery backup and surge protection
  • LEDs and audible alarms
  • Saves files when you're away
  • 375 W at 28 min half, 750 W at 10 min full load runtime

Specification

Frequency Rating
60 Hz
Mounting Type
Tower
Output Voltage
115/120 VAC
Phase
1
Standard & Approvals
RoHS Compliant, UL 1778, CSA Certified, FCC Part 15 Category A, UL 60601-1
Control
On/Off Switch
Cooling
Fan
Cord Length
6 ft
Includes
15 A Input Circuit Breaker, (6 ft) USB Monitoring Cable, (6 ft) DB9 Serial Monitoring Cable, PowerAlert Software and Owner's Manual
Dimensions
7.52 in W x 8.92 in D x 12.72 in H
Application
Used to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source
Type
Line Interactive Medical Grade
Series
SmartPro
Power Rating
750 W, 1000 VA
Number of Outlets
4
NEMA Receptacle Configuration
(4) NEMA 5-15R
NEMA Plug Configuration
NEMA 5-15P
Interface
DB9 Serial/USB
Input Voltage
120 VAC
Backup Time
10/28 min
Environmental Conditions
32 to 104 deg F Operating Temperature, 5 to 122 deg F Storage Temperature, 0 to 95% Non-Condensing Relative Humidity
Body Material
PVC
