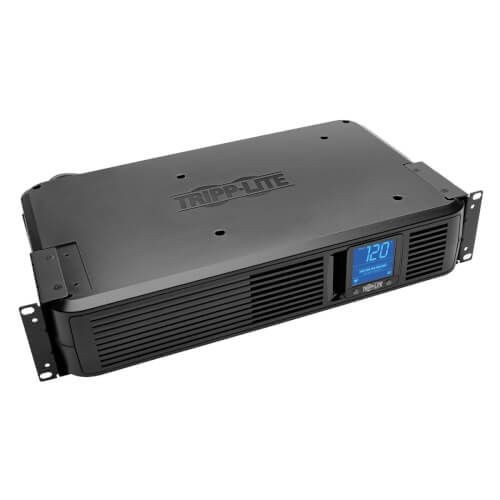

Tripp Lite SmartPro SMART1500LCDXL SmartPro Line-Interactive Uninterruptible Power Supply, 110/115/120 VAC Input, 110/115/120 VAC Output, 900 W/1.5 kVA Power Rating, 4 to 12 min Backup, 8 Outlets

Selected SMART1500LCDXLTripp Lite SmartPro SMART1500LCDXL SmartPro Line-Interactive Uninterruptible Power Supply, 110/115/120 VAC Input, 110/115/120 VAC Output, 900 W/1.5 kVA Power Rating, 4 to 12 min Backup, 8 Outlets
SMART1500LCDXLTripp Lite SmartPro SMART1500LCDXL SmartPro Line-Interactive Uninterruptible Power Supply, 110/115/120 VAC Input, 110/115/120 VAC Output, 900 W/1.5 kVA Power Rating, 4 to 12 min Backup, 8 Outlets

Short Description

The SMART1500LCDXL SmartPro LCD 120 V, 1500 VA/900 W line interactive uninterruptible power supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line interactive UPS switches to battery backup mode in ms to keep your connected equipment running long enough to save files and shut down safely with no data loss. Eight NEMA 5-15R outlets protect against surges, as well as provide up to 12 min of UPS battery support at half load (450 W) and 4 min of support at full load (900 W). You can get even more runtime by connecting an optional BP24V15RT2U external battery pack. Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75 V and overvoltage's as high as 147 V without using any battery power. EMI/RFI noise filtering improves your equipments performance and prevents damage. A 1038-J surge suppression rating protects your equipment from harmful power surges. Space saving NEMA 5-15P right angle plug with 6 ft cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real time input voltage, load, AVR, remaining battery runtime and battery statuses at a glance. With Tripp Lite PowerAlert software (available via free download), the SMART1500LCDXL enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Features

  • Reliable battery backup
  • Optimized outlets
  • Automatic voltage regulation (AVR) corrects under voltages as low as 75 V and overvoltage's as high as 147 V without drawing battery backup power
  • Rotatable LCD status screen
  • AC Line, TEL/DSL and Ethernet surge suppression
  • EMI/RFI line noise filtering
  • USB and DB9 communication ports and free PowerAlert software
  • Flexible installation options
  • 450 W at 12 min half, 900 W at 4 min full load runtime

Specification

Frequency Rating
60 Hz
Input Voltage
110/115/120 VAC
Interface
DB9 Serial/USB
Mounting Type
Post/Rack/Tower
NEMA Plug Configuration
NEMA 5-15P
NEMA Receptacle Configuration
(8) NEMA 5-15R
Number of Outlets
8
Output Voltage
110/115/120 VAC
Phase
1
Power Rating
900 W, 1500 VA
Series
SmartPro
Type
Line Interactive
Standard & Approvals
RoHS Compliant, UL 1778, CSA Certified, FCC Part 15 Category B, NOM Certified
Dimensions
17-1/4 in W x 10-1/2 in D x 3-1/2 in H
Backup Time
4/12 min
Body Material
Polycarbonate
Control
On/Off Switch
Cooling
Fan
Cord Length
6 ft
Display Type
LCD
Environmental Conditions
32 to 104 deg F Operating Temperature, 5 to 122 deg F Storage Temperature, Upto 95% Non-Condensing Relative Humidity
Includes
10 A Input Circuit Breaker, USB Cable, DB9 Serial Cable, Telephone Cable, Mounting Hardware and Owner's Manual
