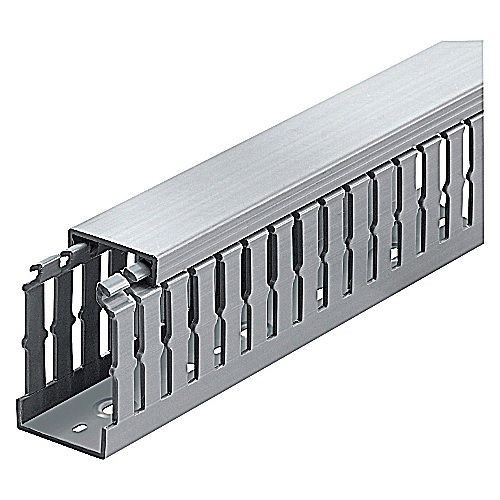

Ty-Duct® TYD2X2NPG6 Wiring Duct, 2 x 2 in Narrow Slot, 2 in W x 2 in D, PVC
Ty-Duct® TYD2X2NPG6 Wiring Duct, 2 x 2 in Narrow Slot, 2 in W x 2 in D, PVC
SKU: T-BTYD2X2NPG6
Manufacturer Part Number: TYD2X2NPG6
UPC: 786210092041
Documents
Features
- Higher number of smaller fingers for more concise harnessing
- Non slip cover does not slide easily and resists vibration
- Rounded edges protect hands and wires
- V shaped slot lead in enables easier and faster wire installation
- Restricted slot design makes sure that wires are held with or without the cover inserted
- Cover attaches flush with sidewall for finished look
- Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct
- Finger design restricts wire from slipping along the edge
- Creates two or three levels of wire service
- Integrated mounting holes larger sizes include staggered holes for mounting flexibility
- Lead free construction
- Designed to fit the spacing of high density terminal blocks
Specification
| Length | 6 ft |
|---|---|
| Material | Flame Retardant PVC |
| Mounting Type | Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Slot Type | Narrow |
| Width | 2 in |
| Depth | 2 |
| Catalog ID | T-BTYD2X2NPG6 |
| Standard & Approvals | CE Marked, CSA, RU Certified, NFPA-79-2002, UL 508/UL 508A, DIN 43 659, JIC |
| Slot Size | 1.25 in H x 0.2 in W |
