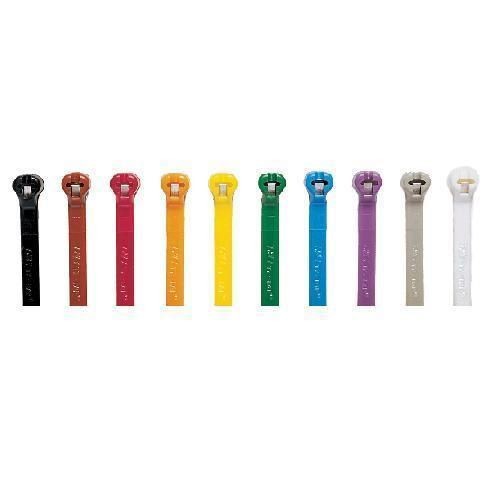

Ty-Rap® TY5232MX 2-Piece High Performance Standard Cable Tie, 8 in L x 0.09 in W x 0.04 in THK, Nylon/Polyamide 6.6, Black

Ty-Rap® TY5232MX 2-Piece High Performance Standard Cable Tie, 8 in L x 0.09 in W x 0.04 in THK, Nylon/Polyamide 6.6, Black
SKU: T-BTY5232MX
Manufacturer Part Number: TY5232MX
UPC: 786210839370
Documents
Short Description
Features
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
- Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
- Weather and UV resistant
- 8 in L nominal
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
- Ribbed and stippled body grips the bundle and prevents slippage. rounded edges protect insulation, preventing sharp edges from damaging cables
- The no slip tail provides easy grip during tensioning
- Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
- Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
- Made of Nylon 6.6
Specification
Length | 8 in |
---|---|
Lock Mechanism | Double Lock |
Material | Nylon 6.6 |
Type | 2-Piece Standard |
Standard & Approvals | UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum, RoHS Compliant |
Color | Black |
Width | 0.09 in |
Thickness | 0.05 in |
Tensile Strength | 18 lb |
Temperature Rating | 220 deg F |
Bundle Diameter | 0.08 - 1.97 in |
