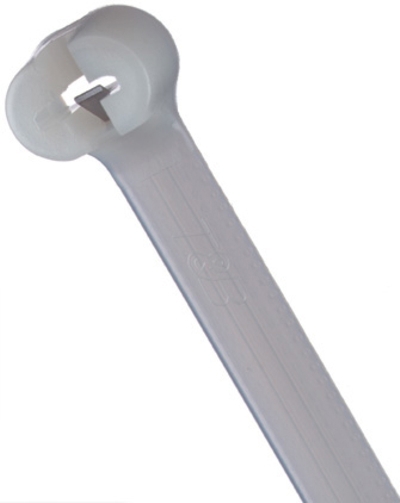

Ty-Rap® TY525M 2-Piece High Performance Standard Cable Tie, 7.31 in L x 0.184 in W x 0.043 in THK, Nylon/Polyamide 6.6, Natural

Selected Data-Spec SheetTy-Rap® TY525M 2-Piece High Performance Standard Cable Tie, 7.31 in L x 0.184 in W x 0.043 in THK, Nylon/Polyamide 6.6, Natural
Data-Spec SheetTy-Rap® TY525M 2-Piece High Performance Standard Cable Tie, 7.31 in L x 0.184 in W x 0.043 in THK, Nylon/Polyamide 6.6, Natural

Documents

Short Description

Innovative design and engineered materials make Ty-Rap® cable ties the perfect fastening solution where performance really matters. Often imitated but never equaled, Ty-Rap® cable ties provide superior performance in any application.

Features

  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
  • Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
  • 7 in L nominal
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
  • Ribbed and stippled body grips the bundle and prevents slippage. rounded edges protect insulation, preventing sharp edges from damaging cables
  • The no slip tail provides easy grip during tensioning
  • Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
  • Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
  • Made of Nylon 6.6

Specification

Length
7.31 in
Lock Mechanism
Double Lock
Material
Nylon 6.6
Minimum Order Qty
100
Order Interval
100
Bundle Diameter
0.138 - 1.77 in
Catalog ID
T-BTY525M
Color
Natural
Temperature Rating
185 deg F
Tensile Strength
50 lb
Thickness
0.043 in
Type
2-Piece Standard
Width
0.184 in
Application
Indoor Application
Standard & Approvals
Mil Spec MS3367-1-9, UL/EN/CSA62275 Type 2/21S Rated, RoHS Compliant
