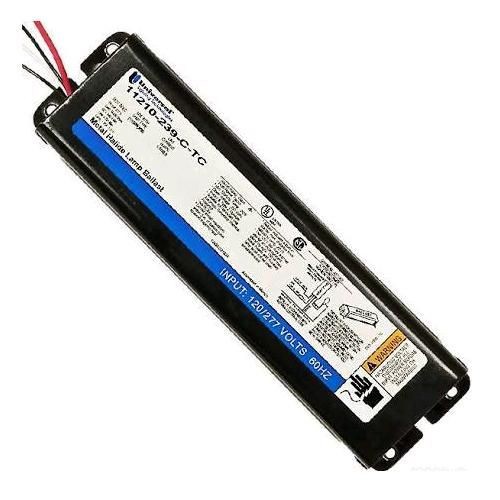

***CLEARANCE*** Universal™ 11210239CTC000C HID Ballast, HID Metal Halide Lamp, 100 W Lamp, 120 to 277 VAC, Probe, 1 Ballast Factor

Selected ***CLEARANCE*** Universal™ 11210239CTC000C HID Ballast, HID Metal Halide Lamp, 100 W Lamp, 120 to 277 VAC, Probe, 1 Ballast Factor
***CLEARANCE*** Universal™ 11210239CTC000C HID Ballast, HID Metal Halide Lamp, 100 W Lamp, 120 to 277 VAC, Probe, 1 Ballast Factor

Documents

Short Description

Our HID F-Can sign ballasts are UL & CSA listed and feature a metal halide design that supplies 80% more lumens per watt than mercury, thus resulting in a greater amount of light per energy dollar. Their lamps can start without flickering at very low ambient temperature (e.g., -30 deg C) thus enabling a longer lamp life.

Features

  • An all-in-one ballast and junction box that is pre-wired and supplied with prestripped leads to facilitate installation while saving material and labor costs
  • Thermally protected class 'P' ballast that automatically turns off when the ballast is hot thus extending the longevity of the ballast
  • Dual-voltage models from 120 - 277 volts to reduce your inventory costs
  • Insulation Class H of 180 deg C
  • 8/4 A Fuse rating
  • 250 V Nominal open circuit voltage
  • 5% Line Volts, 10% Lamp Watts Regulation
  • High reactance autotransformer circuit
  • Normal and high power factor models
  • Carton container

Specification

Standard & Approvals
UL Listed, CSA Certified, ANSI M90
Power Factor
0.9
Start Type
Probe
Voltage Rating
120/277 VAC
Amperage Rating
1.1/0.5 A
Frequency Rating
60 Hz
Lamp Type
Metal Halide
Lamp Wattage
100 W
Minimum Starting Temperature
-22 deg F
Number of Lamps
1
Wattage
125 W
Dimensions
11.75 in L x 3.19 in W x 2.63 in H
