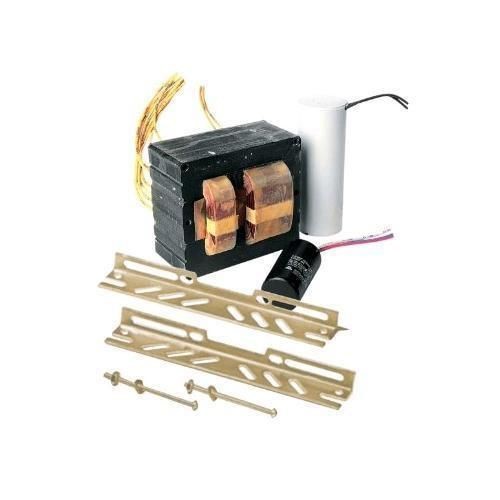

***CLEARANCE*** Universal™ Multi-5® S1000ML5AC5M500K HID Distributor Replacement Kit, High Pressure Sodium Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
***CLEARANCE*** Universal™ Multi-5® S1000ML5AC5M500K HID Distributor Replacement Kit, High Pressure Sodium Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
SKU: MAGS1000ML5AC5M500K
Manufacturer Part Number: S1000ML5AC5M500K
UPC: 768386183433
Documents
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Base Type | Medium |
| Lamp Type | High Pressure Sodium |
| Lamp Wattage | 1000 W |
| Minimum Starting Temperature | -40 deg F |
| Number of Lamps | 1 |
| Power Factor | 0.9 |
| Start Type | Pulse |
| Voltage Rating | 120/208/240/277/480 VAC |
| Wattage | 1100 W |
| Standard & Approvals | UL Listed, UL Insulation Class H, CSA Certified, ANSI S52 |
| Amperage Rating | 2.45 /4.1 /4.6 /5.4 /9.1 A |
| Dimensions | 5.75 in L x 4.25 in W x 5.65 in H |
| Ballast Factor | 1 |
| Clearance | YES |
| Dimmable | No |
