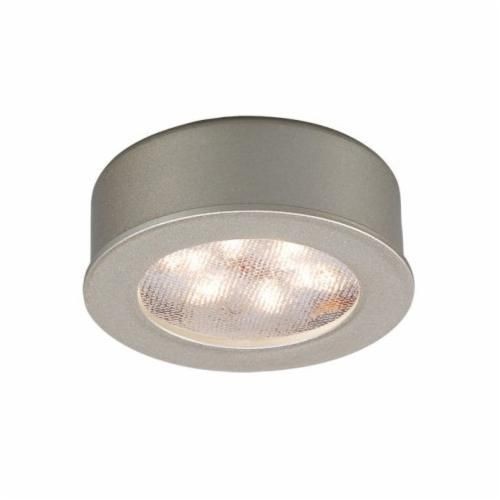

WAC HR-LED87-WT TaskWork Button Light, (6) LED Lamp, 12 VAC, White Housing
WAC HR-LED87-WT TaskWork Button Light, (6) LED Lamp, 12 VAC, White Housing
SKU: WACHR-LED87-WT
Manufacturer Part Number: HR-LED87-WT
UPC: 790576244204
Documents
Features
- Lamp included
- Delivers strong light output with the latest in LED technology
- Quick and easy installation
- Die-cast aluminum fixture, stamped steel housing for surface mount
- Glass beam spread lens
- Class 2, 24 V remote and plug-in transformers allow for up to 20 button lights to be wired together
- May be dimmed to 10% with an electronic low voltage dimmer
- 2-1/8 in cutout hole for recessed mounting, compression springs hold fixture firmly in-place
- Screw housing cover for surface mounting, compress springs and insert into cover
- Not recommended for use in ceiling
- Die-cast aluminum housing
- Surface/recessed mounting
Specification
| Housing Finish | White |
|---|---|
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lumens | 180 Lumens |
| Mounting Type | Surface |
| Number of Lamps | 6 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color Temperature | 3000 K |
| Dimensions | 2-1/4 in L x 2-1/4 in W x 7/8 in H |
| Color Rendering Index (CRI) | 85 |
| Catalog ID | WACHR-LED87-WT |
| Average Life | 70000 hr |
| Lens Type | Glass |
| Lamp Wattage | 5 W |
| Voltage Rating | 12 VAC |
| Includes | 72 in Pre-Installed Wires that Lead Out Through the Top |
| Standard & Approvals | C/US UL Listed |
