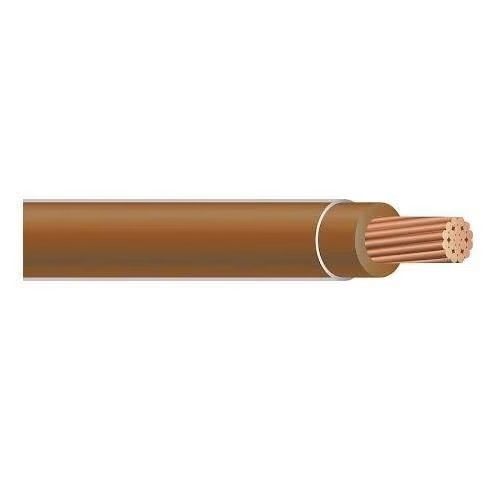

Encore Wire 118101808498 Type THWN-2 Building Wire With SuperSlick Elite® Technology, Reel Packaging, 600 VAC, (1) 1/0 AWG Stranded Copper Conductor, Brown
Selected WCUTHHN1 0BN
Encore Wire 118101808498 Type THWN-2 Building Wire With SuperSlick Elite® Technology, Reel Packaging, 600 VAC, (1) 1/0 AWG Stranded Copper Conductor, Brown
SKU: WCUTHHN1/0BN
Documents
Specification
| Amperage Rating | 170 A |
|---|---|
| Application | Commercial Applications |
| Conductor Size | 1/0 AWG |
| Conductor Type | Stranded Copper |
| Insulation Material | PVC |
| Jacket Color | Brown |
| Jacket Material | Nylon |
| Number of Conductors | 1 |
| Outside Diameter | 0.474 in |
| Packaging Type | Reel |
| Strands | 19 |
| Temperature Rating | 90 deg C |
| Type | Type THWN-2 |
| Voltage Rating | 600 VAC |
| Standard & Approvals | Buy American Act Compliant, RoHS Compliant, UL-83/UL-758/UL-1063/UL-1581/UL-2556/UL E-156879, ASTM B800/ASTM B801/ASTM B836, Federal Specification AA-59544, CSA C22.2 No. 75, NEMA WC70/ICEA S-95-658, ANSI NFPA 79 AWM, New York State DOS-16120-87-1222-1048, IEEE 1202/FT4, ICEA T-29-520, ARRA 2009 Section 1605, MasterSpec Division 26 Sections 260519, 260523 |
