WERNER® 6306 6300 Type IAA Single Sided Step Ladder, 6 ft H Ladder, 375 lb Load, 5 Steps, Fiberglass
WERNER® 6306 6300 Type IAA Single Sided Step Ladder, 6 ft H Ladder, 375 lb Load, 5 Steps, Fiberglass
SKU: WRN6306
Manufacturer Part Number: 6306
UPC: 051751033052
Documents
Short Description
Features
- Holstertop with lock-in system secures tools to increase productivity
- Shoulder bolt and nut on top hinge
- 4 rivets attach top to each front rail
- Double riveted slip resistant TRACTION-TRED® steps
- Back up plates reinforce all top connectors
- Heavy duty internal spreaders
- Full set of rear horizontals spaced one per foot
- All steps and top rear horizontal are knee braced

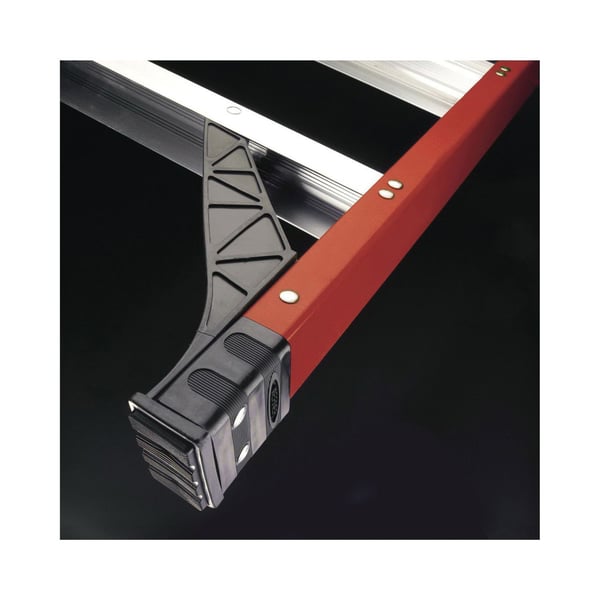

- Slip resistant foot pads attached to the EDGE® structure
- Every rivet backed up by metal, metal plates or washers to protect rails
- Optional manual pail shelf kit model no PK76-9 or automatic closing pail shelf kit model no 76-2
- Plastic rail shield, heavy edge bracing
- 3 ft 10 in H maximum standing
- 10 ft H reach
- 5-3/4 x 13 in top
- 3-1/8 in front rails
- 1-3/16 in front flange
- 1-7/8 in rear rails
- 1-3/16 in rear flange
- 3 in steps steel spreader
Specification
| Series | 6300 |
|---|---|
| Tread | Ribbed |
| Type | Type IAA Single Sided |
| Application | Climbing Equipment |
| Standard & Approvals | ANSI A14.5 (2007), OSHA Approved |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Base Spread | 41-1/4 in |
| Bottom Width | 23-3/8 in |
| Catalog ID | WRN6306 |
| Ladder Height | 6 ft |
| Load Capacity | 375 lb |
| Material | Fiberglass |
| Number of Steps | 5 |
| Includes | (2) Tool Holes, (2) Parts Trays, Paint Tray Slot, Can Hook, Lock in Accessory Sockets, Drill Hole, Paint, Quart and Gallon Paint Can and Tape Measure Slot |
