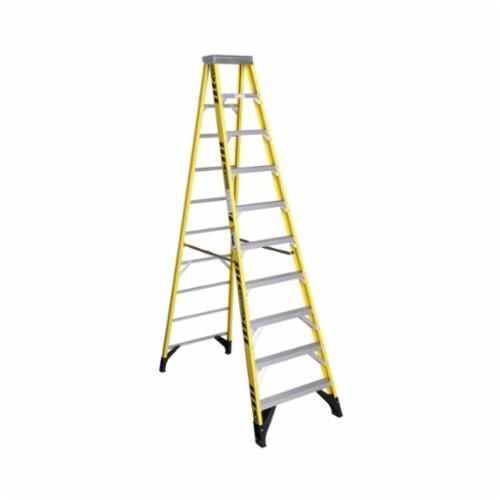

WERNER® 7310 7300 Type IAA Single Sided Step Ladder, 10 ft H Ladder, 375 lb Load, 9 Steps, Fiberglass
WERNER® 7310 7300 Type IAA Single Sided Step Ladder, 10 ft H Ladder, 375 lb Load, 9 Steps, Fiberglass
SKU: LAD7310
Manufacturer Part Number: 7310
UPC: 051751042900
Short Description
Features
- Extra heavy duty aluminum holstertop with thick side plates
- Shoulder bolt and lock nut on top hinge, 4 solid aluminum rivets attach top to each front rail
- Slip resistant TRACTION-TRED® steps are single riveted and have extra wide knee braces
- Heavy duty internal spreaders
- Full set of rear horizontals spaced one per foot
- Glas*Mark® violator stripes on rails allow ladder to be more visible
- EDGE® bracing system helps to decrease damage to rail
- Molded external rail shield helps protect against abrasion damage
- Slip resistant foot pads attached to the EDGE® structure
- Plastic external rail shield helps protect against abrasion damage
- Every rivet backed up by metal, metal plates or washers to protect rails
- Optional manual pail shelf kit model no PK76-9 or automatic closing pail shelf kit model no 76-2
- 7 ft 8 in H maximum standing
- 14 ft H reach
- 7-1/4 x 14-7/8 in top
- 3-1/8 in front rails
- 1-3/16 in front flange
- 1-7/8 in rear rails
- 1-3/16 in rear flange
- 3 in steps
Specification
| Material | Fiberglass |
|---|---|
| Number of Steps | 9 |
| Series | 7300 |
| Tread | Ribbed |
| Type | Type IAA Single Sided |
| Application | Climbing Equipment |
| Standard & Approvals | ANSI A14.5 (2007), OSHA Approved |
| Includes | (3) Tool Holes, (2) Drill Holes, (2) Tool Slots and Parts Tray |
| Bottom Width | 32 |
| Base Spread | 66-5/8 |
| Load Capacity | 375 |
| Ladder Height | 10 |
