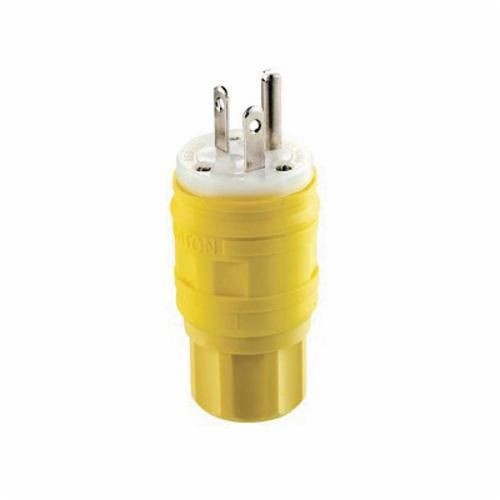

Leviton® Wetguard® 14W33 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Leviton® Wetguard® 14W33 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU: LEV14W33
Manufacturer Part Number: 14W33
UPC: 078477848319
Documents
Short Description
Features
- Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments
- EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents
- Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse
- Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors
- Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal
- Non-magnetic stainless steel fast threading assembly screws won't interfere with sensitive equipment
- Connector "hood" closure cap seals device when not in use
- 16 to 10 AWG terminal accommodation
Specification
| Grade | Industrial |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Yellow |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Enclosure | NEMA 4/4X/12/IP66/IP67 |
| Dimensions | 1.5 in Dia x 2.71 in L |
| Catalog ID | LEV14W33 |
| NEMA Rating | NEMA 5-20P |
| Material | TPV |
| Standard & Approvals | RoHS Compliant, ANSI C-73, CSA C22.2 No. 42, CSA File No. LR406, NOM 057, UL Federal Specification WC-596, UL File No. E13393, UL 498 |
| Type | 1-Phase Cable Mount Grounding Watertight |
| Cord Diameter | 0.375 to 0.655 |
| Application | Industrial Applications |
| Temperature Rating | -40 to 60 deg C |
