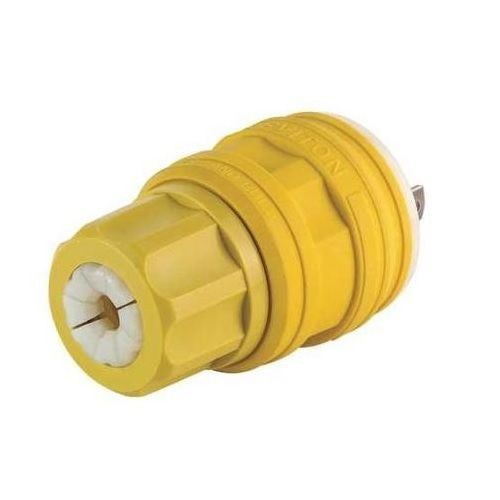

Leviton® Wetguard® 24W47 1-Phase Grounding Watertight Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Selected Leviton® Wetguard® 24W47 1-Phase Grounding Watertight Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® Wetguard® 24W47 1-Phase Grounding Watertight Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Documents

Short Description

Leviton® Wetguard® line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.

Specification

Grade
Industrial
Material
TPV
NEMA Rating
NEMA L5-15P
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Screw
Type
1-Phase Grounding
Voltage Rating
125 VAC
Amperage Rating
15 A
Color
Yellow
Cord Diameter
0.234 to 0.687
Dimensions
1.5 in Dia x 2.71 in L
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI C-73 Approved, CSA C22.2 No. 42, File No. LR-406 Certified, NEMA WD-1, WD-6, NOM 057 Certified, UL 498
