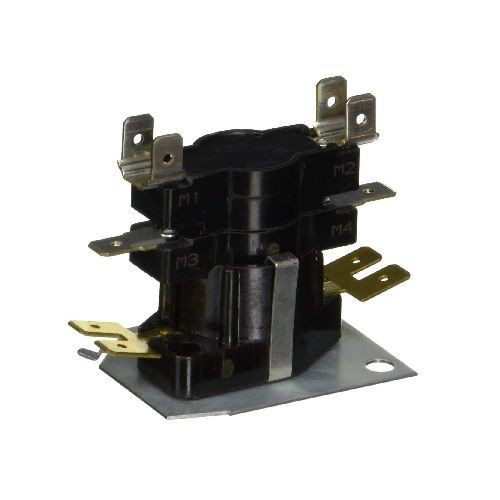

White-Rodgers™ 24A34-3 Electric Heat Sequencer, 2 Switches, 1 Timings, 1 to 20 sec Switch On Time, 40 to 110 sec Switch Off Time, 14 A Inductive, Import

Selected White-Rodgers™ 24A34-3 Electric Heat Sequencer, 2 Switches, 1 Timings, 1 to 20 sec Switch On Time, 40 to 110 sec Switch Off Time, 14 A Inductive, Import
White-Rodgers™ 24A34-3 Electric Heat Sequencer, 2 Switches, 1 Timings, 1 to 20 sec Switch On Time, 40 to 110 sec Switch Off Time, 14 A Inductive, Import

Short Description

The 24a34 series fan/heat Sequencer gives the service technician a direct replacement for sequencing both fan and heat. the terminal markings on the 24a34 sequencers are equivalent to most other manufacturers' types. these sequencers may be wired in series, as shown in wiring diagrams, to allow sequencing of one through seven element furnaces.

Features

  • Replaces Honeywell, Mars, Tod, Gemline, Klixon
  • Any contacts can be used as auxiliary contacts
  • Double quick connect terminals for combination loads
  • -50 to 165 deg F
  • Direct replacement for most fan/heat sequencing functions
  • Terminal markings are equivalent to competitive types
  • 30 A at 240 VAC
  • 14 a at 120 VAC, 3000 W at 120 VAC

Specification

Inductive Rating
14
Mounting Type
Multi-Poise
Number of Switches
2
Number of Timings
1
Minimum Order Qty
1
Order Interval
1
Domestic/Import
Import
Pilot Duty Rating
125 VA
Standard & Approvals
UL Listed
Control Voltage
24
Catalog ID
W-R24A34-3
Switch On Time
1 to 20
Switch Off Time
40 to 110
Series
24A34
Resistive Rating
25 A, 3000 W
