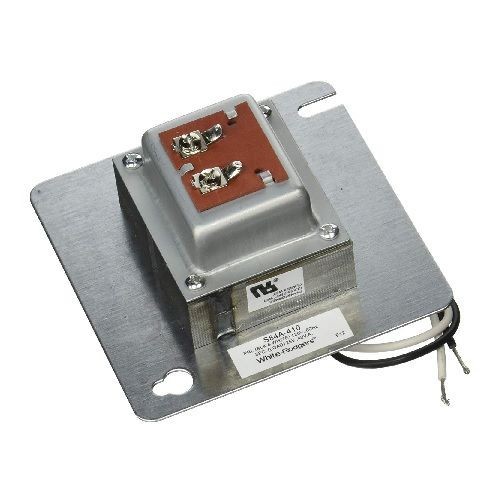

White-Rodgers™ S84A-410 Class 2 Stepdown Transformer, 24 VAC Secondary, 1 ph, Import
White-Rodgers™ S84A-410 Class 2 Stepdown Transformer, 24 VAC Secondary, 1 ph, Import
SKU: W-RS84A-410
Manufacturer Part Number: S84A-410
UPC: 786710007019
Features
- 10 in leads primary
- Screw terminals secondary
- Energy limiting design, unaffected by momentary short circuit
- Continued short circuit of secondary will cause primary winding to open in 1 to 2 minutes without creating a fire hazard
- 150 deg F maximum ambient temperature
- 40 VA output
Specification
| Frequency Rating | 60 |
|---|---|
| Mounting Type | Plate |
| Phase | 1 |
| Primary Voltage | 120 |
| Secondary Voltage | 24 |
| Type | Class 2 Stepdown |
| Standard & Approvals | UL E33334 |
| Dimensions | 5 in H x 4 in W x 3-1/2 in D |
| Domestic/Import | Import |
