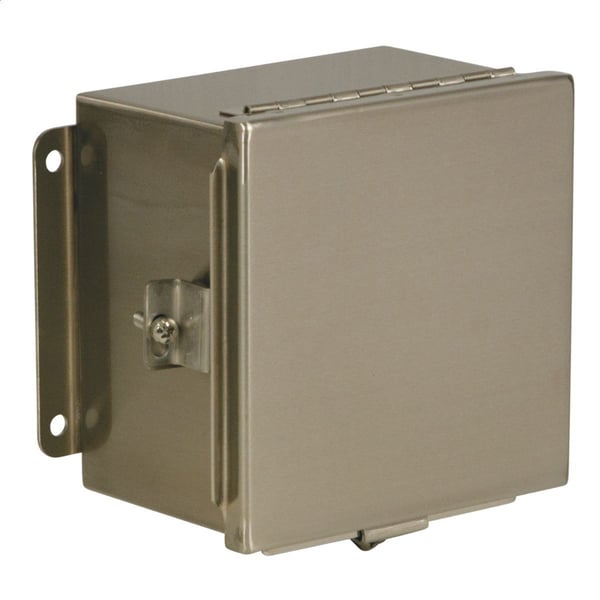

Wiegmann® BN4060604CHSS Enclosure, 6 in W x 4 in D x 6 in H, NEMA 4/4X/12/13, 304 Stainless Steel
Wiegmann® BN4060604CHSS Enclosure, 6 in W x 4 in D x 6 in H, NEMA 4/4X/12/13, 304 Stainless Steel
SKU: WIEBN4060604CHSS
Manufacturer Part Number: BN4060604CHSS
UPC: 786725378555
Documents
Features
- Bodies and doors fabricated from 16 ga type 304 stainless steel
- Continuously welded seams ground smooth, less knockouts or holes
- Closed cell oil-resistant neoprene gasket
- External mounting feet are provided for mounting
- Weldnuts are provided on models 6 x 4 in and larger to secure optional back panel
- Stainless steel screws and clamps, equal to enclosure construction, on three sides of cover assure watertight seal
- Door removed by pulling stainless steel continuous hinge pin
- Grounding provisions provided
- Cover and outside of enclosure have a smooth grained finish
- 6-3/4 x 4 in mounting
Specification
| Height | 6 in |
|---|---|
| Material | 304 Stainless Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4/4X/12/13 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 144 cu-in |
| Color | Silver |
| Cover Type | Continuous Hinged |
| Depth | 4 in |
| Width | 6 in |
| Application | Indoor/Outdoor Applications |
| Standard & Approvals | CSA LL66078, Types 4/4X/12/13, NEMA/EEMAC Type 4/4X/12/13, JIC EL-1-71, UL File No. 50/E6924/E64791, PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Series | BN4-CHSS |
| Panel Size | 4.88 in W x 4.88 in H |
| Finish | Smooth Grained |
| Catalog ID | WIEBN4060604CHSS |
