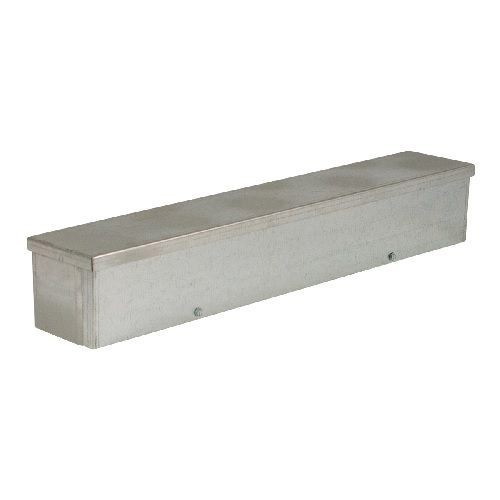

Wiegmann® RSCG121248GNK RSCG Spot and Tack Welded Wireway Gutter, 48.13 in L x 12.06 in W x 12.06 in H, Slip-On Cover, Carbon Steel
Wiegmann® RSCG121248GNK RSCG Spot and Tack Welded Wireway Gutter, 48.13 in L x 12.06 in W x 12.06 in H, Slip-On Cover, Carbon Steel
SKU: WIERSCG121248GNK
Manufacturer Part Number: RSCG121248GNK
UPC: 786725875399
Documents
Features
- Trough and cover fabricated from 16 ga G-90 pre-galvanized steel
- Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure
- Embossed mounting holes are conveniently located on the back
- A slip-on removable cover is securely fastened with screws located along the bottom edge
- 1/2 to 3/4 in and 3/4 to 1 in concentric knockout, 1 to 1-1/4 in solid knockout
- Without knockouts
Specification
| Height | 12.06 in |
|---|---|
| Knockout Size | 1/2 to 1-1/4 in |
| Length | 48.13 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 3R |
| Series | RSCG |
| Type | Spot and Tack Welded |
| Width | 12.06 in |
| Application | For use to protect wiring in outdoor installations against rain, sleet and snow or indoors against dripping water |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E32576, CSA File No. LL66078, OSHA Approved, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Color | Gray |
| Cover Type | Slip-on |
| Finish | Pre-Galvanized |
