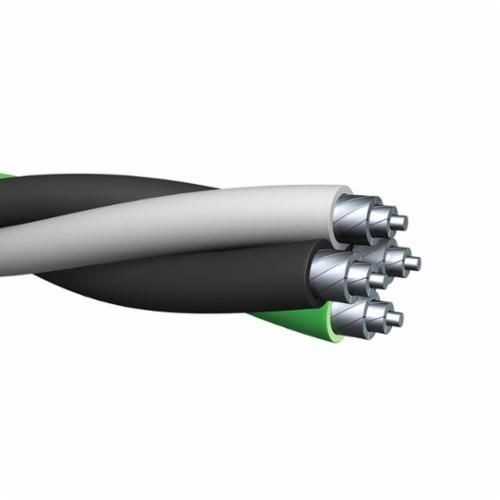

Encore Wire 380351901450 Mobile Home Feeder Cable, Reel Packaging, 600 VAC, (4) 1 to 2/0 AWG Stranded Aluminum Conductor, 1000 ft L
Encore Wire 380351901450 Mobile Home Feeder Cable, Reel Packaging, 600 VAC, (4) 1 to 2/0 AWG Stranded Aluminum Conductor, 1000 ft L
SKU: WALMOBLE2/04R1000
Manufacturer Part Number: 380351901450
UPC: 739373887641
Features
- Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
- Cross-linked polyethylene (XLPE) insulation per UL-854, UL-44 and ANSI/ICEA S-105-692
- Black XLPE insulation or phase conductors, white XLPE or neutral conductor, green XLPE or ground
Specification
| Insulation Material | Polyethylene |
|---|---|
| Jacket Color | Black |
| Length | 1000 ft |
| Number of Conductors | 4 |
| Outside Diameter | 1.308 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 150 A |
| Catalog ID | WALMOBLE2/04R1000 |
| Conductor Size | 1 to 2/0 AWG |
| Conductor Type | Stranded Aluminum |
| Strands | 12x12x7 |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | For residential applications |
| Standard & Approvals | UL File E-174428, RUS Accepted, Reach, RoHS Compliant |
