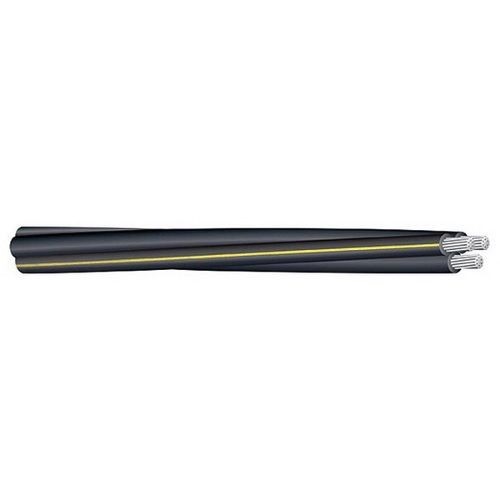

URD Cable, Stranded, 4 AWG, 3 Conductors, Aluminum, Black, 600 Volts, Code Name: Vassar
Selected URD4/3URD Cable, Stranded, 4 AWG, 3 Conductors, Aluminum, Black, 600 Volts, Code Name: Vassar
URD Cable, Stranded, 4 AWG, 3 Conductors, Aluminum, Black, 600 Volts, Code Name: Vassar
SKU: WALURD4/3
Manufacturer Part Number: URD4/3
Documents
Specification
| Insulation Material | Polyethylene |
|---|---|
| Jacket Color | Black;Yellow |
| Length | 1000 ft |
| Number of Conductors | 3 |
| Outside Diameter | 0.754 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 125 A @ Direct Burial;90 A @ In Duct |
| Catalog ID | WALURD4/3 |
| Conductor Material | Aluminum |
| Conductor Size | 4-4-4 AWG |
| Temperature Rating | +90 Deg C @ Conductor;+20 Deg C @ Ambient |
| Type | Stranded |
| Voltage Rating | 600 V |
