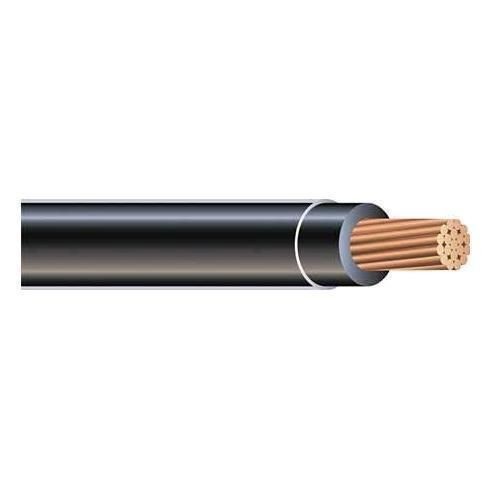

MTW Wire, Stranded, 12 AWG,1 Conductor, Copper, 600 Volts, 500 ft, Black
Selected MTW12STRBKMTW Wire, Stranded, 12 AWG,1 Conductor, Copper, 600 Volts, 500 ft, Black
MTW Wire, Stranded, 12 AWG,1 Conductor, Copper, 600 Volts, 500 ft, Black
SKU: WCUMTW12STRBK
Manufacturer Part Number: MTW12STRBK
Documents
Specification
| Insulation Material | Polyvinyl Chloride |
|---|---|
| Jacket Color | Black |
| Jacket Material | Polyamide;Nylon |
| Length | 500 ft |
| Number of Conductors | 1 |
| Outside Diameter | 0.120 in |
| Temperature Rating | +90 Deg C @ Dry/Wet Locations;+105 Deg C @ Oil/Coolants |
| Type | Stranded |
| Voltage Rating | 600 V |
| Amperage Rating | 20 A |
| Conductor Size | 12 AWG |
| Conductor Material | Copper |
