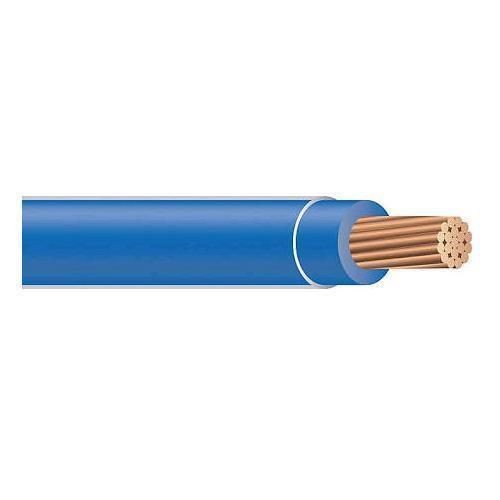

MTW Wire, Stranded, 16 AWG, 1 Conductor, Copper, 600 Volts, 500 ft, Blue
Selected MTW16STRBEMTW Wire, Stranded, 16 AWG, 1 Conductor, Copper, 600 Volts, 500 ft, Blue
MTW Wire, Stranded, 16 AWG, 1 Conductor, Copper, 600 Volts, 500 ft, Blue
SKU: WCUMTW16STRBE
Manufacturer Part Number: MTW16STRBE
Documents
Specification
| Length | 500 ft |
|---|---|
| Number of Conductors | 1 |
| Type | Stranded |
| Voltage Rating | 600 V |
| Amperage Rating | 8 A |
| Conductor Material | Copper |
| Conductor Size | 16 AWG |
| Temperature Rating | +90 Deg C @ Dry Locations;+105 Deg C @ Oil/Coolants |
| Outside Diameter | 0.123 in |
| Jacket Material | Polyamide;Nylon |
| Jacket Color | Blue |
| Insulation Material | Polyvinyl Chloride |
