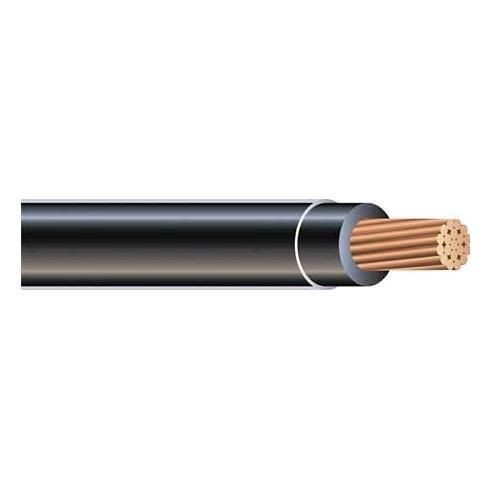

THHN Wire, Stranded, 10 AWG, 1 Conductor, Copper, 600 Volts, Black, 500 ft
Selected THHN10STRBKTHHN Wire, Stranded, 10 AWG, 1 Conductor, Copper, 600 Volts, Black, 500 ft

THHN Wire, Stranded, 10 AWG, 1 Conductor, Copper, 600 Volts, Black, 500 ft
SKU: WCUTHHN10STRBK
Manufacturer Part Number: THHN10STRBK
Documents
Specification
| Insulation Material | Polyvinyl Chloride |
|---|---|
| Jacket Color | Black |
| Jacket Material | Polyamide;Nylon |
| Length | 500 ft |
| Number of Conductors | 1 |
| Outside Diameter | 0.16 in |
| Temperature Rating | +90 Deg C @ Wet/Dry Locations;+75 Deg C in Oil/Coolants |
| Type | Stranded |
| Voltage Rating | 600 V |
| Amperage Rating | 40 A |
| Conductor Size | 10 AWG |
| Conductor Material | Copper |
