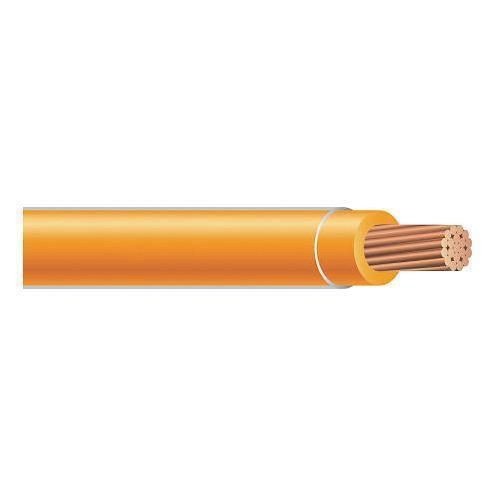

THHN Wire, Stranded, 12 AWG, 1 Conductor, Copper, 600 Volts, Orange, 2500 ft
Selected THHN12OERTHHN Wire, Stranded, 12 AWG, 1 Conductor, Copper, 600 Volts, Orange, 2500 ft
THHN Wire, Stranded, 12 AWG, 1 Conductor, Copper, 600 Volts, Orange, 2500 ft
SKU: WCUTHHN12OER
Manufacturer Part Number: THHN12OER
Specification
| Insulation Material | Polyvinyl Chloride |
|---|---|
| Jacket Color | Orange |
| Jacket Material | Polyamide;Nylon |
| Number of Conductors | 1 |
| Outside Diameter | 0.127 in |
| Temperature Rating | +90 Deg C @ Wet/Dry Locations;+75 Deg C in Oil/Coolants |
| Type | Stranded |
| Voltage Rating | 600 V |
| Amperage Rating | 30 A |
| Conductor Material | Copper |
