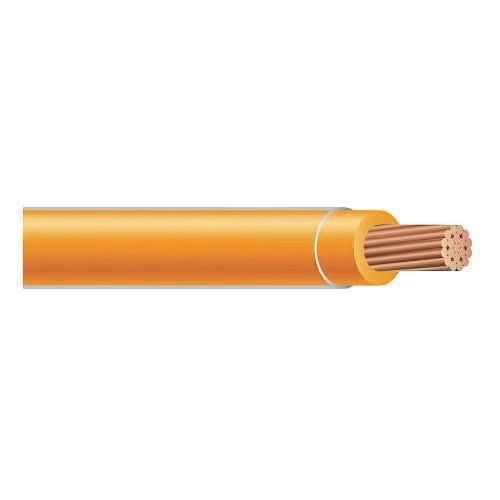

THHN Wire, Stranded, 400 KCMIL, 1 Conductor, Copper, 600 Volts, Orange
Pick Up Only
Selected WCUTHHN400OE
THHN Wire, Stranded, 400 KCMIL, 1 Conductor, Copper, 600 Volts, Orange
SKU: WCUTHHN400OE
Manufacturer Part Number: THHN400OE
Documents
Specification
| Voltage Rating | 600 V |
|---|---|
| Insulation Material | Polyvinyl Chloride |
| Outside Diameter | 0.821 in |
| Temperature Rating | +90 Deg C @ Wet/Dry Locations;+75 Deg C in Oil/Coolants |
| Number of Conductors | 1 |
| Type | Stranded |
| Jacket Material | Polyamide;Nylon |
| Jacket Color | Orange |
| Conductor Material | Copper |
| Amperage Rating | 380 A |
