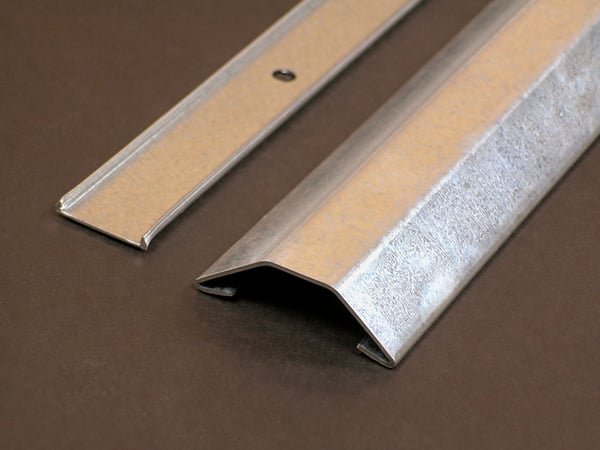

Wiremold® 1500-10 1-Channel Base and Cover, For Use With 1500 Series Overfloor Raceway, Steel

Pick Up Only
Selected Data-Spec SheetWiremold® 1500-10 1-Channel Base and Cover, For Use With 1500 Series Overfloor Raceway, Steel
Data-Spec SheetWiremold® 1500-10 1-Channel Base and Cover, For Use With 1500 Series Overfloor Raceway, Steel

Documents

Short Description

Wiremold products work together seamlessly to save installation time, while providing enhanced flexibility and productivity in environments ranging from residential dwellings and educational institutions to meeting rooms and healthcare facilities.

Features

  • 600 V voltage rating
  • Full line of fittings, provides a complete and safe installation
  • Paintable to match decor
  • Flat profile, unobtrusive, low-profile appearance
  • Galvanized steel, assures durability
  • 0.04 in galvanized steel
  • Packed ten 10 ft (3m) lengths per carton
  • Base has 9/32 in (7.1mm) diameter mounting holes on centers of approximately 8 in (203 mm

Specification

Material
Steel
Color
Gray
Finish
Electro Galvanized
Standard & Approvals
cULus Underfloor Raceways File E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Article 386 of NEC, Section 12-1600 of CEC, RoHS Compliant
Application
Commercial and Office Application
Dimensions
1-9/16 in ID x 11/32 in OD x 10 ft L
Series
1500
Mounting Type
Snap-On
Suitable For Use With
1500 Series Raceway
Type
Single Channel
