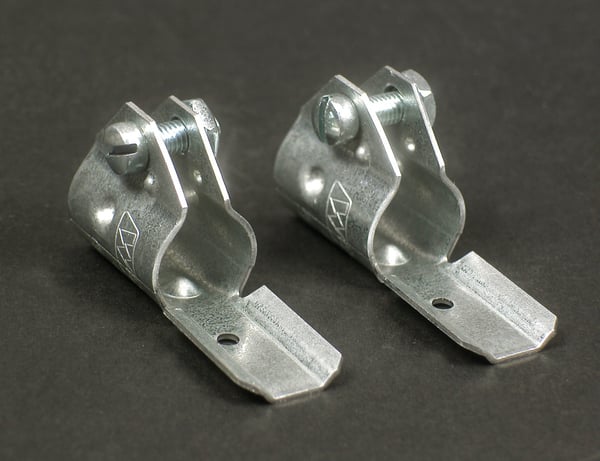

Wiremold® 5790B Armored Cable Connector Fitting, For Use With 500 and 700 Series Raceway, Steel, Electro Galvanized

Selected Data-Spec SheetWiremold® 5790B Armored Cable Connector Fitting, For Use With 500 and 700 Series Raceway, Steel, Electro Galvanized
Data-Spec SheetWiremold® 5790B Armored Cable Connector Fitting, For Use With 500 and 700 Series Raceway, Steel, Electro Galvanized

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • Low-profile, unobtrusive appearance
  • Blends with any decor or setting
  • ScuffCoat finish, tough, durable, scratch resistant can be over painted with latex paint
  • Fittings have removable covers which allow easy access to wiring for changes and additions
  • Connects 14/2, 14/3, 12/2, and 12/3 MC and armored cable to Wiremold fittings
  • A short piece of 500 or 700 Series Raceway (1 5/8 in (141mm) min) must be used between connector and Wiremold fittings
  • Not for use with 1/2 in flex conduit

Specification

Material
Steel
Suitable For Use With
500 and 700 Series Raceway
Application
Commercial, Office and Residential Application
Standard & Approvals
cULus E4376 Guide RJBT, Fittings File E4751 Guide RJPR, Meets Article 386 of NEC, Meets Section 12-1600 of CEC, RoHS Compliant
Dimensions
2 in L
Finish
Electro Galvanized
