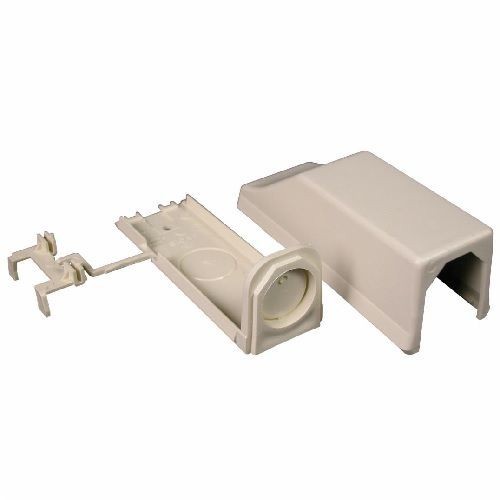

Wiremold® 810A2-WH Entrance End Fitting, For Use With 800 Series Raceway, PVC, White

Selected Wiremold® 810A2-WH Entrance End Fitting, For Use With 800 Series Raceway, PVC, White
Wiremold® 810A2-WH Entrance End Fitting, For Use With 800 Series Raceway, PVC, White

Short Description

Wiremold® products work together seamlessly to save installation time, while providing enhanced flexibility and productivity in environments ranging from residential dwellings and educational institutions to meeting rooms and healthcare facilities.

Features

  • 600 VAC voltage rating
  • 1-channel capacity
  • Accommodates communication and/or power wiring
  • Durable, textured PVC ivory finish
  • Single and dual compartment low profile design
  • Adhesive backing for low voltage under 50 VAC applications
  • For connecting 800 series raceway with 1/2 in CRFB size conduit or armored cable
  • Non-metallic
  • 1/2 in knockouts on end and bottom

Specification

Material
PVC
Suitable For Use With
800 Series Raceway
Application
Commercial, Office and Residential Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, cULus E90378 Guide RJTX, UL-5A, File No. E90377 Guide RJYT, Meets Article 388 of NEC, UL Listed for up to 600 V, Meets Section 12-2600 of CEC
Dimensions
4-1/4 in L x 1-7/16 in W x 1-1/2 in H
Color
White
Includes
1/2 in Knockouts on End and Bottom
