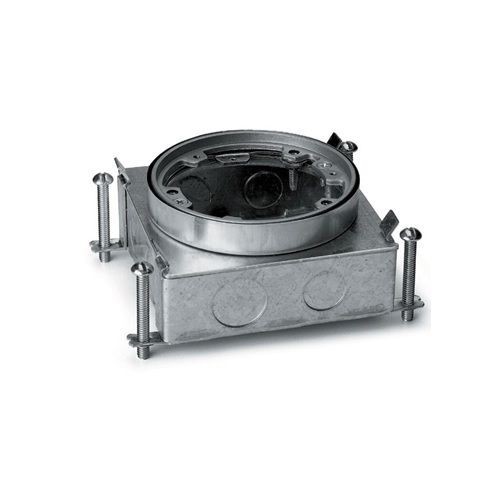

Wiremold® 886B 880 Floor Box, Steel, 39 cu-in Capacity, 1 Gang, 12 Knockouts, 2-3/4 in H x 4-13/16 in W x 4-13/16 in D

Selected Wiremold® 886B 880 Floor Box, Steel, 39 cu-in Capacity, 1 Gang, 12 Knockouts, 2-3/4 in H x 4-13/16 in W x 4-13/16 in D
Wiremold® 886B 880 Floor Box, Steel, 39 cu-in Capacity, 1 Gang, 12 Knockouts, 2-3/4 in H x 4-13/16 in W x 4-13/16 in D

Documents

Short Description

Wiremold® 880 Series Floor Box provides an excellent solution for the low density power or communication requirements in open space areas. The 880 Series brings the power or communication service directly to the workstation. The 880 Series comes in a cast iron version for on grade applications and an economical stamped steel version for above grade applications. The 880 Series is supported by one of the most complete lines of brass, brushed aluminum and nonmetallic activations in the industry. Some applications for the 880 Series Floor Box are retail facilities, commercial offices, hotels and financial institutions.

Features

  • 1-3/4 in pre-pour, 1/2 in post-pour
  • Single-service round floor boxes

Specification

Knockout Size
1/2 to 3/4 in
Material
Steel
Mounting Type
Screw-On
Number of Knockouts
12
Minimum Order Qty
1
Order Interval
1
Capacity
39 cu-in
Catalog ID
W-M886B
Dimensions
2-3/4 in H x 4-13/16 in W x 4-13/16 in D
Series
880
Shape
Round
Type
Stamped
Application
Commercial and Office
