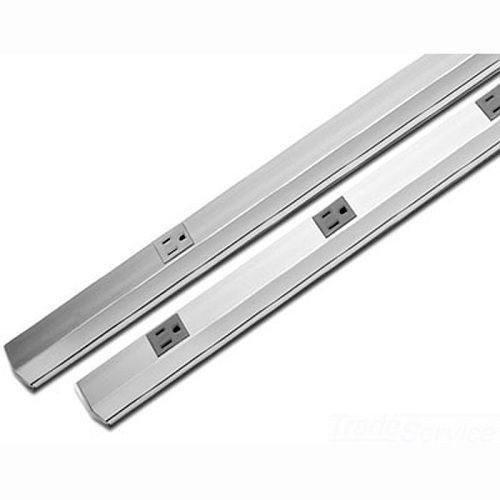

Wiremold® Plugmold® BK20GB306TR 2000TR 1-Circuit Multi-Outlet Power Strip, 36 in L x 1-19/32 in W x 3/4 in H, 1 Channel, Steel

Selected BK20GB306TRWiremold® Plugmold® BK20GB306TR 2000TR 1-Circuit Multi-Outlet Power Strip, 36 in L x 1-19/32 in W x 3/4 in H, 1 Channel, Steel
BK20GB306TRWiremold® Plugmold® BK20GB306TR 2000TR 1-Circuit Multi-Outlet Power Strip, 36 in L x 1-19/32 in W x 3/4 in H, 1 Channel, Steel

Documents

Short Description

Plugmold 2000TR Series Tamper-Resistant multioutlet strips have industry leading levels of both safety and convenience. Plugmold 2000TR Series includes a patented internal receptacle shutter system that provides a clean and solid fit for standard three-pronged plugs and prevents the insertion of unwanted objects. Each power strip has a durable finish, is available in multiple lengths, and includes up to 10 tamper-resistant receptacles in standard lengths.

Features

  • Meets new Tamper Resistant requirements for 2008 NEC Section 406.11. Provides additional protection from burns and other injuries
  • Built-in shutter system. Prevents the insertion of unwanted objects such as hairpins, keys and nails. Providing additional protection for occupants including small children
  • Provides additional power access in smaller, more confined areas. Multiple lengths present more mounting options
  • 15A proprietary simplex decorator receptacle. Functional and aesthetically pleasing, matches any décor
  • Superior strength for residential applications. Providing years of protection and convenience
  • Easier and more convenient installation. Eliminates the need to break through walls
  • Multiple power feed options. Provide clean, attractive installations with concealed power sources
  • Dry interior locations
  • Steel Raceway
  • Compact low profile design
  • Full range of fittings, one and two - gang device boxes
  • GB wiring configuration
  • 6 in outlet center distance
  • 3-wire, #12 AWG THHN (1 hot, 1 neutral and 1 ground), 1 circuit, has insulated grounding conductor

Specification

Housing Material
Steel
Length
36 in
Mounting
Threaded
Number of Outlets
6
Receptacle Type
NEMA 5-15R/Simplex
Series
2000TR
Type
Single Channel
Voltage Rating
125 VAC
Application
Commercial, Residential and Office
Standard & Approvals
cULus File No. E4376 Listed Guide RJBT, File No. E15191 Guide PVGT, File No. E41751 Guide RJPR, Meets Article 386 of NEC, Meets Article 380 and 406.11 of NEC, RoHS Compliant
Amperage Rating
15 A
Conductor Size
12 AWG
Dimensions
36 in L x 1-19/32 in W x 3/4 in H
Color
Black
