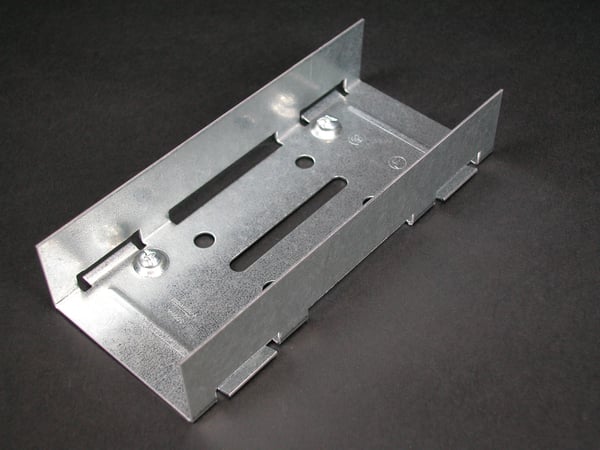

Wiremold® G3001A 1-Channel Rigid Inside Coupling Fitting, For Use With 3000 Series Raceway, Steel, Electro-Galvanized

Selected Data-Spec SheetWiremold® G3001A 1-Channel Rigid Inside Coupling Fitting, For Use With 3000 Series Raceway, Steel, Electro-Galvanized
Data-Spec SheetWiremold® G3001A 1-Channel Rigid Inside Coupling Fitting, For Use With 3000 Series Raceway, Steel, Electro-Galvanized

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • Mounts easily on walls, modular furniture, under raised floors, or over ceiling, speeds installation; provides flexibility to bring wiring to points of use
  • Removable cover, provides access to wiring
  • For joining lengths of 3000 Series Raceway when added rigidity is required, i.e raceway suspended overhead

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
W-MG3001A
Color
Gray
Dimensions
6 in L x 2-1/2 in W x 1-1/4 in H
Finish
Electro Galvanized
Suitable For Use With
3000 Series Raceway
Application
Commercial and Office Application
Standard & Approvals
cULus E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Meets Article 386 of NEC, Meets Section 12-600 of CEC, RoHS Compliant
