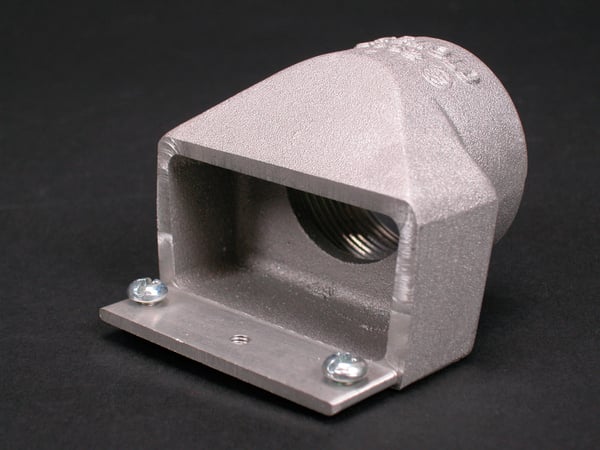

Wiremold® G3082 1-Channel Conduit Connector Fitting, For Use With 3000 Series Raceway, Steel

Selected Data-Spec SheetWiremold® G3082 1-Channel Conduit Connector Fitting, For Use With 3000 Series Raceway, Steel
Data-Spec SheetWiremold® G3082 1-Channel Conduit Connector Fitting, For Use With 3000 Series Raceway, Steel

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • Mounts easily on walls, modular furniture, under raised floors, or over ceiling, speeds installation; provides flexibility to bring wiring to points of use
  • Removable cover, provides access to wiring
  • To connect end of 3000 Series Raceway with 1-1/2 in trade size conduit or armored cable

Specification

Material
Steel
Mounting Type
Screw
Suitable For Use With
3000 Series Raceway
Application
Commercial and Office Application
Standard & Approvals
cULus E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Meets Article 386 of NEC, Meets Section 12-600 of CEC, RoHS Compliant
Dimensions
2-11/16 in L x 2-13/16 in W
Color
Gray
