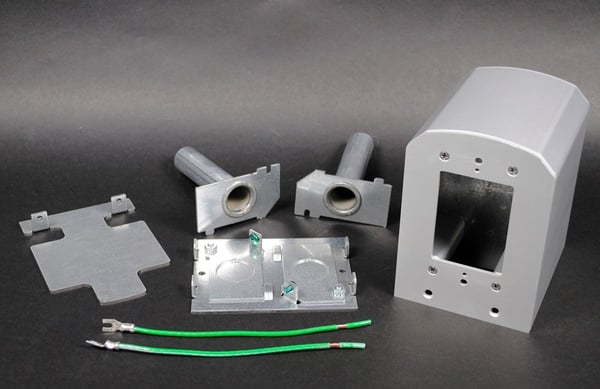

Wiremold® LBP2 Lab Bench Pedestal, For Use With Work Surface Lab Bench Table Box, 2-Gang, 50 cu-in Capacity, 4-Outlet, Screw Mount, Bottom Knockout Cable Entry, Extruded Aluminum
Wiremold® LBP2 Lab Bench Pedestal, For Use With Work Surface Lab Bench Table Box, 2-Gang, 50 cu-in Capacity, 4-Outlet, Screw Mount, Bottom Knockout Cable Entry, Extruded Aluminum
SKU: W-MLBP2
Manufacturer Part Number: LBP2
UPC: 786776182224
Features
- Base is configurable to have a combination of two 3/4 in knockouts or two 3/4 in EMT stubs
- Accommodates a variety of power outlets (duplex, decorator, GFCI and up to 30 A twist lock)
- Use Wiremold® AVIP to provide communications and A/V
- Large capacity, the new Wiremold® lab bench table box can be divided into two gangs that each have the capacity to wire a 15 A, 20 A, GFCI or 30 A twist lock receptacle
- The LBP2 model table box is currently the only third party listed table box that can house back to back GFCIs
- Protection against spills, the Wiremold® lab bench table box is the first lab bench activation to be tested to the proposed UL 111 standard for multi outlet assemblies
- This standard includes a spill test, which proves there is no risk of shock or short circuiting due to moisture when combined with certain Pass & Seymour® receptacles
- Multiple services, the Wiremold® lab bench table box delivers power, communication or A/V with the use of Wiremold® AVIP series device plates, the removable divider, allows designers the option to co-locate services in the same outlet box
- Variety of mounting options, field configurability allows installers to attach conduits directly to the box using 3/4 in trade size knockouts, or use the 3/4 in conduit stubs included with the box
Specification
| Material | Extruded Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | W-MLBP2 |
| Dimensions | 4 x 6 x 5 in |
| Finish | Anodized |
| Specifications | 2-Gang, 50 cu-in Capacity, 4-Outlet, Screw Mount, Bottom Knockout Cable Entry |
| Suitable For Use With | Work Surface Lab Bench Table Box |
| Application | Laboratory Work Surfaces Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, cULus File No. E2961 Guide QCIT, cULus File No. E15191 Guide PVGT, Article No. 380 NEC, Article No. 12-3032 CEC, RoHS Compliant |
| Includes | Aluminum Housing, Side Plates, Steel Base, Divider |
