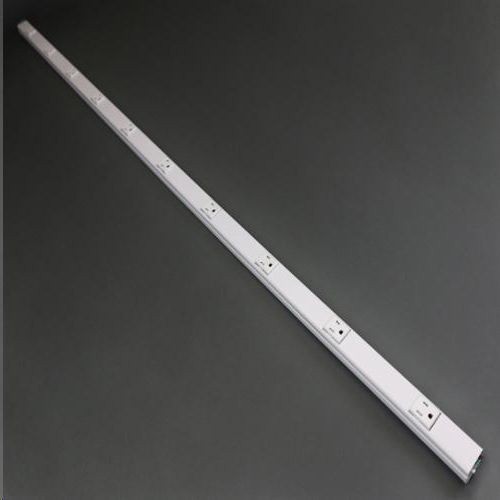

Wiremold® Plugmold® S20GB606TR 2000 1-Circuit 3-Wire Multi-Outlet System, 6 ft L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel

Pick Up Only
Selected Wiremold® Plugmold® S20GB606TR 2000 1-Circuit 3-Wire Multi-Outlet System, 6 ft L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel
Wiremold® Plugmold® S20GB606TR 2000 1-Circuit 3-Wire Multi-Outlet System, 6 ft L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel

Documents

Short Description

Steel Plugmold® multi-outlet systems are available in a wide range of lengths and finishes to provide a versatile solution for many applications. Options include versions with single or alternating circuits, standard, or isolated ground receptacles, Snapicoil® harnesses of prewired receptacles, USB charging options, GFCI protection, tamper resistance, plug-in and cord-ended units. Steel Plugmold® Multioutlet Systems are available in black or ivory ScuffCoat™ finish, painted white or gray enamel finish, or stylish.

Features

  • Meets new tamper-resistant requirements for 2008 NEC section 406.11
  • Provides additional protection from burns and other injuries, mandated for residential applications
  • Built-in shutter system prevents the insertion of unwanted objects such as hairpins, keys and nails, providing additional protection for occupants including small children
  • Available in 3 and 5 ft length with 6 in receptacle spacing provides additional power access in smaller, more confined areas
  • Provides additional power access in smaller, more confined areas
  • Multiple lengths present more mounting options
  • 15 A proprietary simplex decorator receptacle, functional and aesthetically pleasing, matches any decor
  • Steel or aluminum construction, superior strength for residential applications providing years of protection and convenience
  • Designed for surface mounting, easier and more convenient installation eliminates the need to break through walls
  • Multiple power feed options provide clean, attractive installations with concealed power sources
  • Steel raceway, compact low profile design
  • Steel raceway, compact low profile design, full range of fittings, one and two gang device boxes

Specification

Height
3/4 in
Length
6 ft
Material
Steel
Mounting Type
Screw-On
Number of Channels
1
Outlet Center Distance
6
Series
2000
Type
1-Circuit 3-Wire
Voltage Rating
125 VAC
Width
1-9/32 in
Application
Commercial, Office, Residential and Dry Interior Locations Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus File No. E4376 Guide RJBT, File No.E15191 Guide PVGT, Article No. 380 NEC, 406.11
Cable Type
12 AWG THHN
Finish
Stainless Steel
Outlet Rating
15 A Receptacle
Outlet Configuration
(11) Single Tamper Resistant Receptacle
Number of Outlets
12
Includes
(1) Coupling, (2) Blank End Fittings
