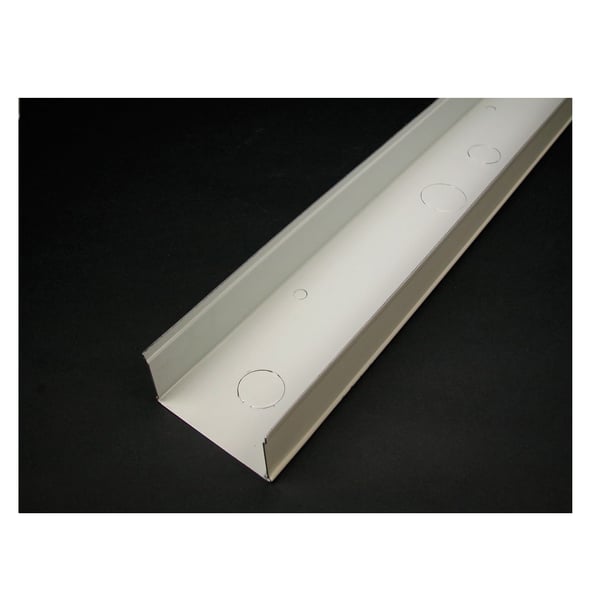

Wiremold® V3000B Raceway Base, 10 ft L x 2-3/4 in W x 1-15/32 in H, Steel, Ivory

Pick Up Only
Selected Wiremold® V3000B Raceway Base, 10 ft L x 2-3/4 in W x 1-15/32 in H, Steel, Ivory
Wiremold® V3000B Raceway Base, 10 ft L x 2-3/4 in W x 1-15/32 in H, Steel, Ivory

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • 2-3/4 x 1-15/32 in outside diameter
  • Mounts easily on Walls, modular furniture, under raised floors, or Over ceiling, Speeds installation, provides flexibility to bring wiring to points of use, removable cover, provides access to wiring
  • 0.040 in (1.0 mm) steel, packed in ten 10 ft (3 m) lengths, 100 ft (31 m) per carton
  • Base sections have predrilled 1/2 and 3/4 in trade size entrance KOs and 9/32 in (7.1 mm) dia mounting screw KOs on approximately 9-3/8 in (238 mm) centers

Specification

Height
1-15/32 in
Length
10 ft
Material
Steel
Mounting Type
Wall
Voltage Rating
600 VAC
Width
2-3/4 in
Application
Commercial, Office and Residential Application
Color
Ivory
Standard & Approvals
cULus File E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Base & Blank Cover Meets Article 386 of NEC, Meets Section 12-600 of CEC
